Zero Client Comparisons

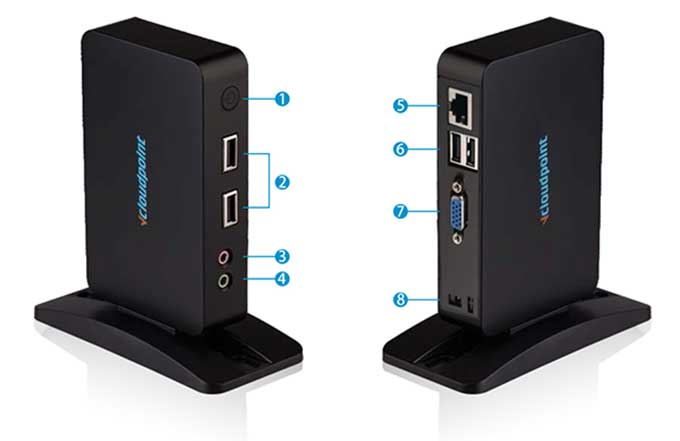

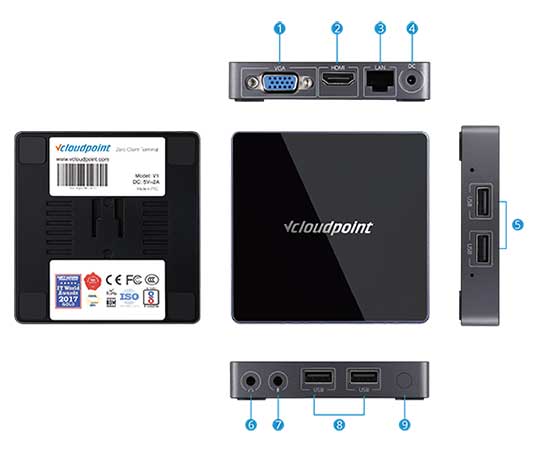

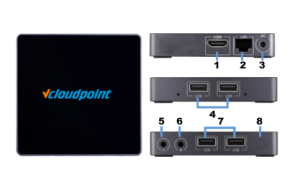

Connections

    • Power/ Reset Button
    • USB2.0
    • 3.5mm Speaker
    • 3.5mm Microphone
    • 10/100 Mbps Ethernet
    • USB2.0
    • VGA Display Port
    • 5V DC Power Input
    • VGA Display Port
    • HDMI Display Port
    • 10/100/1000 Mbps Ethernet
    • 5V DC Power Input
    • USB2.0
    • 3.5mm Speaker
    • 3.5mm Microphone
    • USB 2.0
    • Power/ Reset Button
    • HDMI Display Port
    • 10/100 Ethernet
    • 5V DC Power Input
    • USB2.0 Ports
    • 3.5mm Mic Jack
    • 3.5mm Speaker Jack
    • USB2.0 Ports
    • Power/ Reset Button

Specifications

Model

S100

V1

A1

Download This Datasheet

Size 124(W)x75(D)x26(H) mm 93(W)x90(D)x18(H) mm 93(W)x90(D)x18(H) mm
Net Weight 107g 150g 87g
Color Matte black Diamond black & moon sliver Matte black
Anti-theft Gadget No Yes Yes
Power Consumption Avg on Working: 5W (independent of external USB devices); Standby: 0.2w; Max: 10w
Display Support VGA HDMI or VGA HDMI
Resolution 32 bits color depth, 30FPS
Standard screens: 640×480,800×600,1024×768,1280×1024,1600×1200
Wide screens: 1360×768,1366×768,1440×900,1600×900,1680×1050,1920×1080
Wired Networking 10/100 Mbps Ethernet (RJ45) 10/100/1000 Mbps Ethernet (RJ45) 10/100 Mbps Ethernet (RJ45)
WIFI Networking optional external WIFI antenna at additional cost: 802.11b/g/n/ac, support of 2.4G/5G WIFI
Internal hardware All solid-state design. No moving parts, no fans, no local user storage.
Setting Management Terminal device settings can be managed at the terminal or the server manger software.
Protocol vCloudPoint Dynamic Desktop Protocol (DDP)
Video Support Full HD 1080p for all media formats (Client-side rendering for local videos on VLC player; Server-side rendering for local and web-embedded videos on other media players ) P.S. Model A1 currently unavailable for client-side rendering.
Audio Support HQ16 bits, 44.1Khz/ 48Khz,input and output through 3.5mm jacks or USB ports
USB Devices Support Storage Devices, USB Hubs, Single, Multi-functional & Dot Matrix Printers,Smart Card Reader, Office &
POS Scanners, Multi Touch Screens, Web Camera, Parallel to USB Convertors, etc; An external power supply
may be required for devices working on large voltage. View Test USB devices
Desktop Agent Connects to a remote desktop session with vMatrix Server Manager running in the system; Connects tothe machine console with Virspire Desktop Agent running in the system.
Certifications FCC Class A&B, CE, CCC, RoHS compliant, BIS, NOM, ISO 9001:2015, ISO 14001:2015
