Development Board

Mega 2560 ST1026

Mega 2560

ST1026

The Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 54 (of which 15 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
Length 101.52 mm
Width 53.3 mm
Weight 37 g

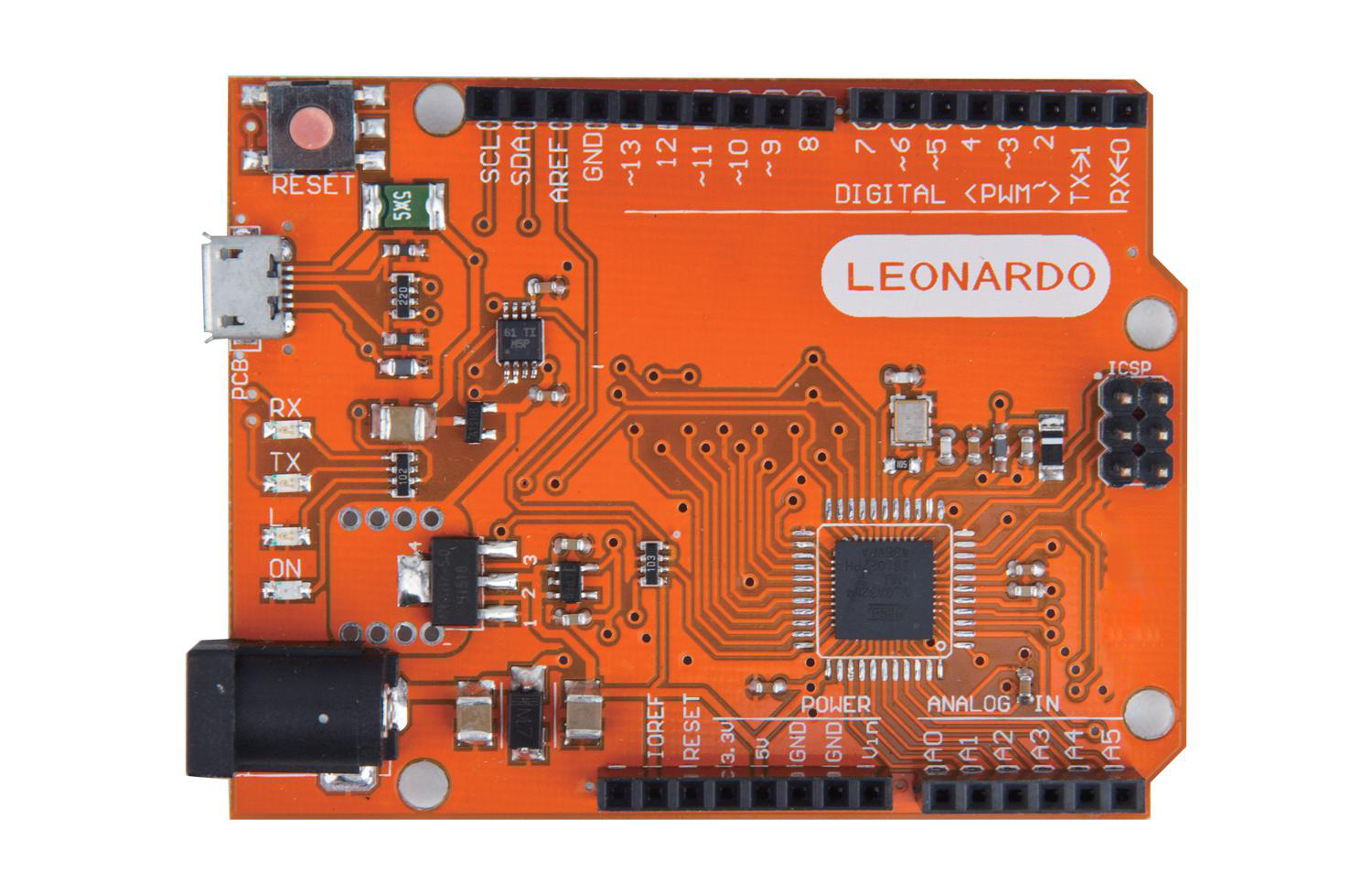

Leonardo ST1028

Leonardo

ST1028

The Leonardo is a microcontroller board based on the ATmega32u4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

Microcontroller ATmega32u4
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 20
PWM Channels 7
Analog Input Channels 12
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega32u4) of which 4 KB used by bootloader
SRAM 2.5 KB (ATmega32u4)
EEPROM 1 KB (ATmega32u4)
Clock Speed 16 MHz
Length 68.6 mm
Width 53.3 mm
Weight 20g

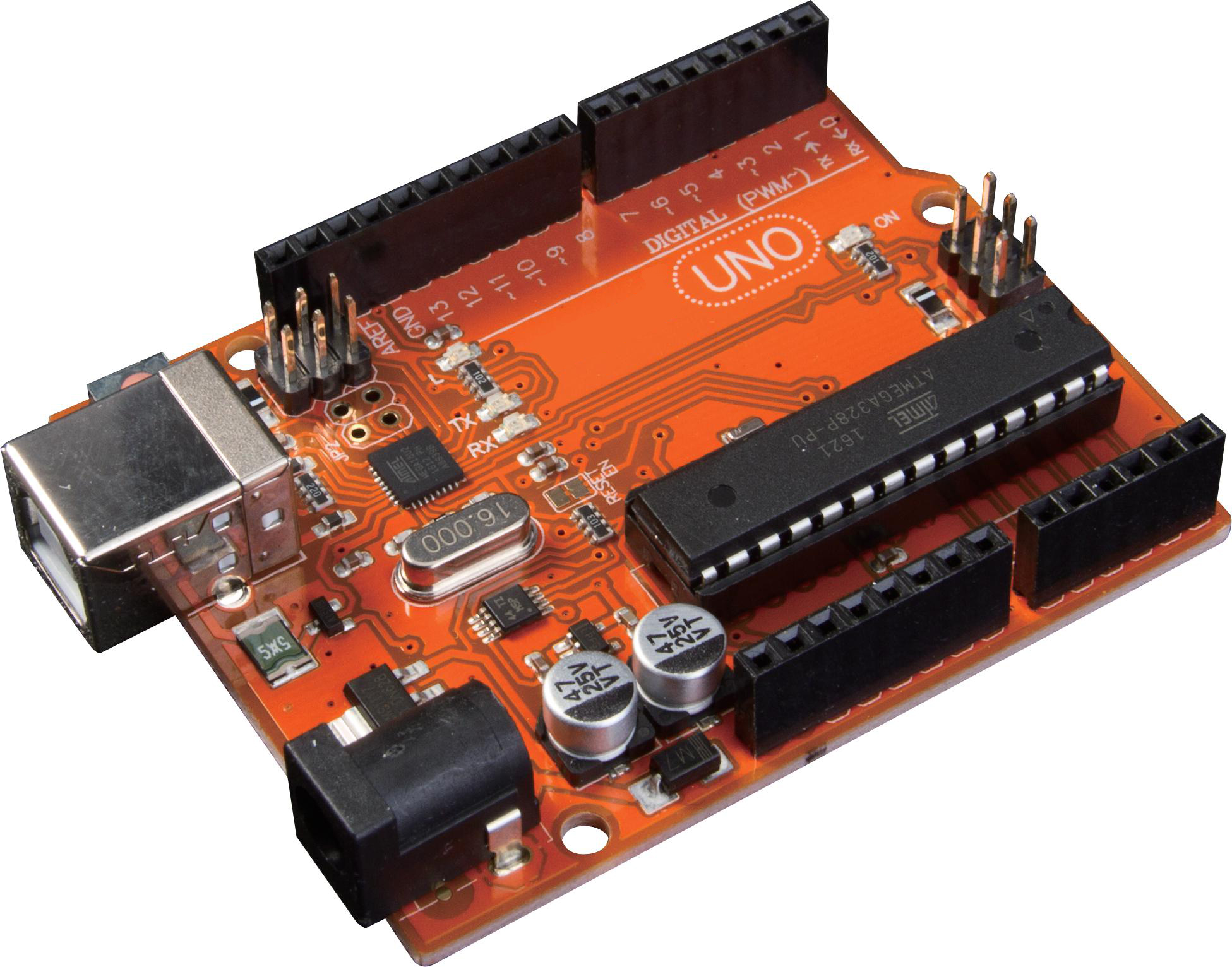

UNO ST1025

UNO

ST1025

The uno is 100 percent compatible with Arduino uno(Re3). It is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. You can tinker with your UNO without worrying too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.

Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
PWM Digital I/O Pins 6
Analog Input Pins 6
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328P) of which 0.5 KB used by bootloader
SRAM 2 KB (ATmega328P)
EEPROM 1 KB (ATmega328P)
Clock Speed 16 MHz
Length 68.6 mm
Width 53.4 mm
Weight 25 g

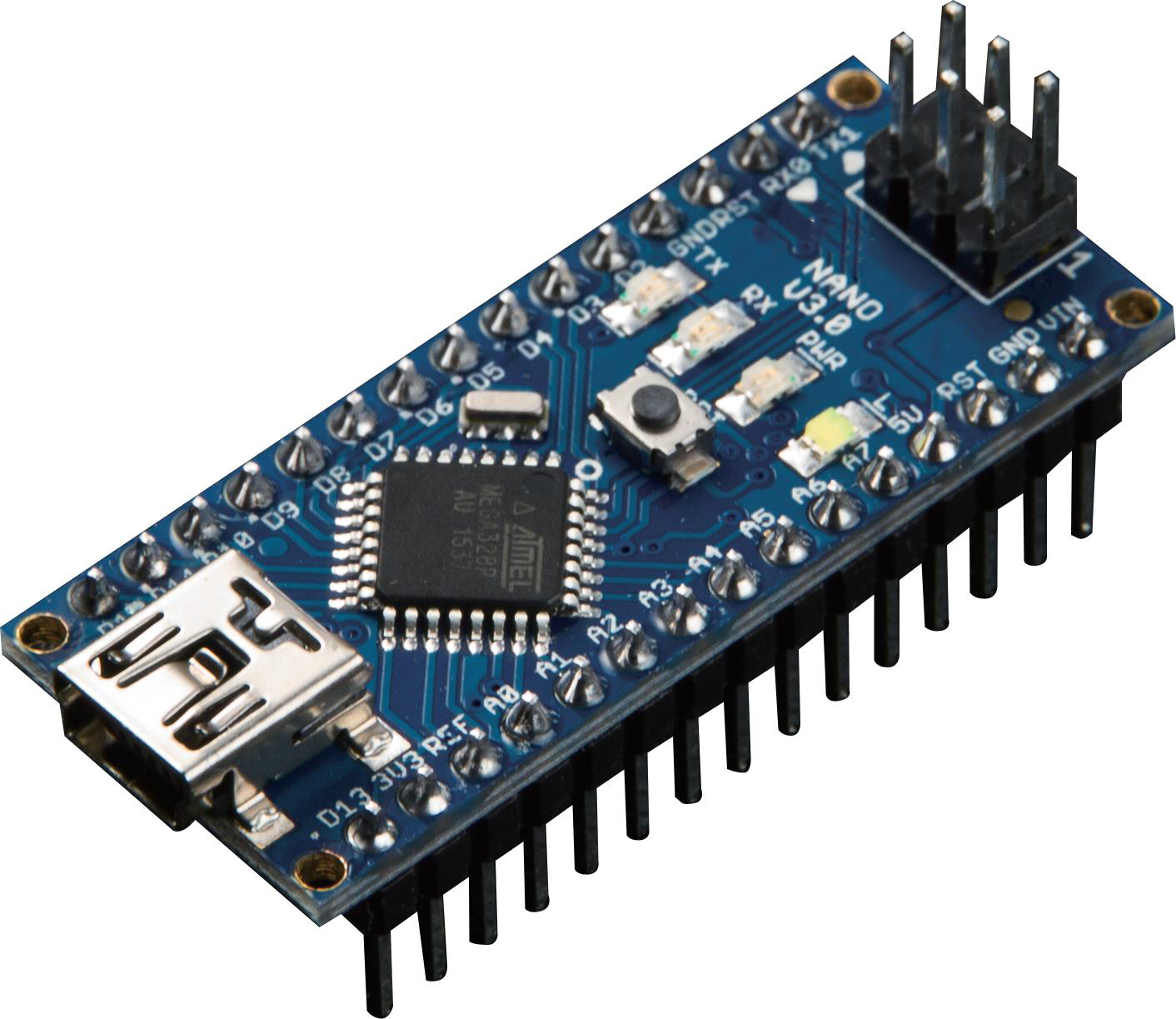

Nano ST1027

Nano

ST1027

The Nano is a small, complete, and breadboard-friendly board based on the ATmega328 or ATmega168.It has more or less the same functionality as the Arduino Duemila-nove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

Microcontroller Atmel ATmega168 or ATmega328
Operating Voltage (logic level) 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM 1 KB (ATmega168) or 2 KB (ATmega328)
EEPROM 512 bytes (ATmega168) or 1 KB (ATmega328)
Clock Speed 16 MHz
Length 45 mm
Width 18 mm
Weight 5 g

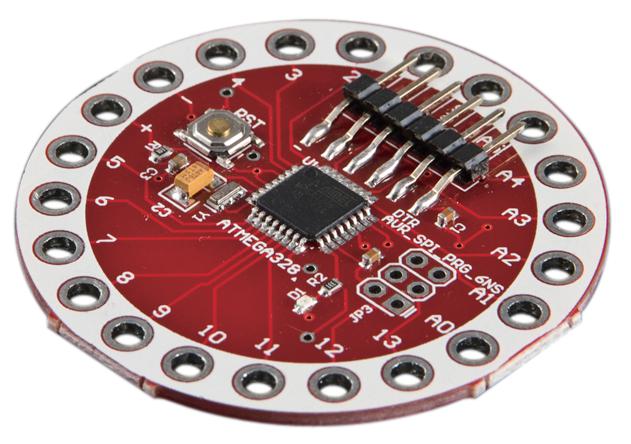

LilyPad DE015

LilyPad

DE015

The LilyPad Board is based on the ATmega168V or the ATm- ega328V. The LilyPad Arduino was designed and developed by Leah Buechley and SparkFun Electronics.

Microcontroller ATmega168 or ATmega328V
Operating Voltage 2.7-5.5 V
Input Voltage 2.7-5.5 V
Digital I/O Pins 14
PWM Channels 6
Analog Input Channel 6
DC Current per I/O Pin 40 mA
Flash Memory 16 KB(of which 2 KB used by bootloader)
SRAM 1 KB
EEPROM 512 bytes
Clock Speed 8 MHz

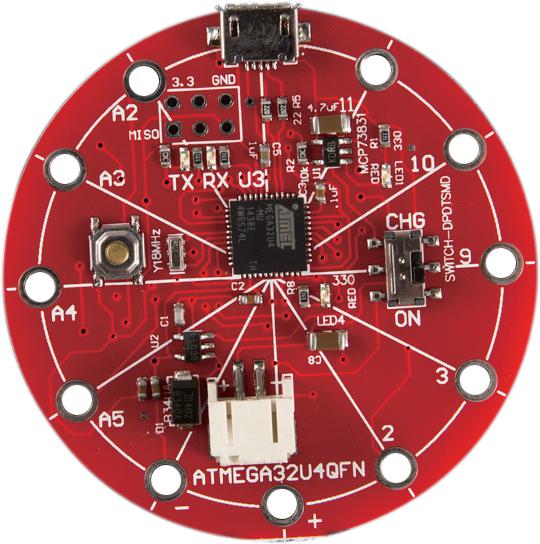

LilyPad USB DE013

LilyPad USB

DE013

The LilyPad USB is a microcontroller board based on the ATm- ega32u4. It has 9 digital input/output pins (of which 4 can be used as PWM outputs and 4 as analog inputs), an 8 MHz resonator, a micro USB connection, a JST connector for a 3.7V LiPo battery, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a battery to get started.

Microcontroller ATmega168 or ATmega328V
Operating Voltage 2.7-5.5 V
Input Voltage 2.7-5.5 V
Digital I/O Pins 14
PWM Channels 6
Analog Input Channel 6
DC Current per I/O Pin 40 mA
Flash Memory 16 KB(of which 2 KB used by bootloader)
SRAM 1 KB
EEPROM 512 bytes
Clock Speed 8 MHz
