Sensor for Arduino (3)

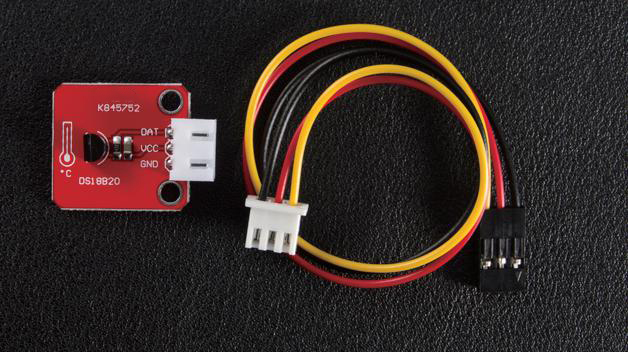

DS18B20 Temperature Sensor SE029

DS18B20 Temperature Sensor

SE029

This module is temperature sensor with chipDS18B20, It’s different from other NTC-MF523950 temperature sensor(ST1147) or LM35 temperature sensor(SE039).

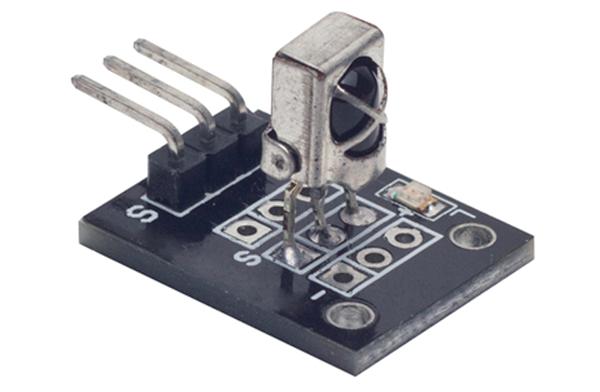

IR Receiver Module ST1089

IR Receiver Module

ST1089

This module usually used together with the IR transmit Module(Module34), This module can read infrared light value and print in the Serial Monitor session.

• Operation voltage: 5V
• 3Pin
• Size:25x15mm
• Weight:2g

Optical Broken Module SE056

Optical Broken Module

SE056

Optical Broken Module , also called photo-interrupter, which is a device that is made up of an infrared led and a photo transistor with a gap between the two of them, When something is placed between the gap the light is cut and the current flow through the photo transistor is reduced or stopped.

• Operation voltage: 5V
• 3Pin
• Size:28x15mm
• Weight: 2g

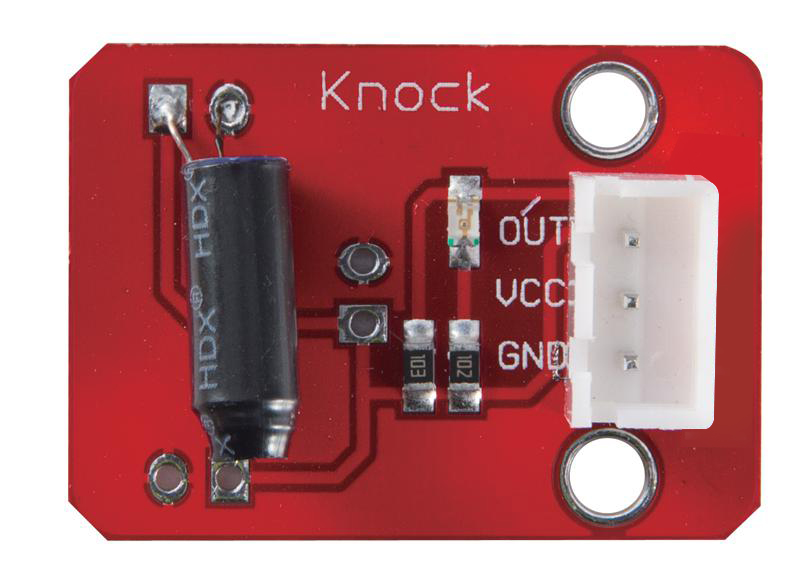

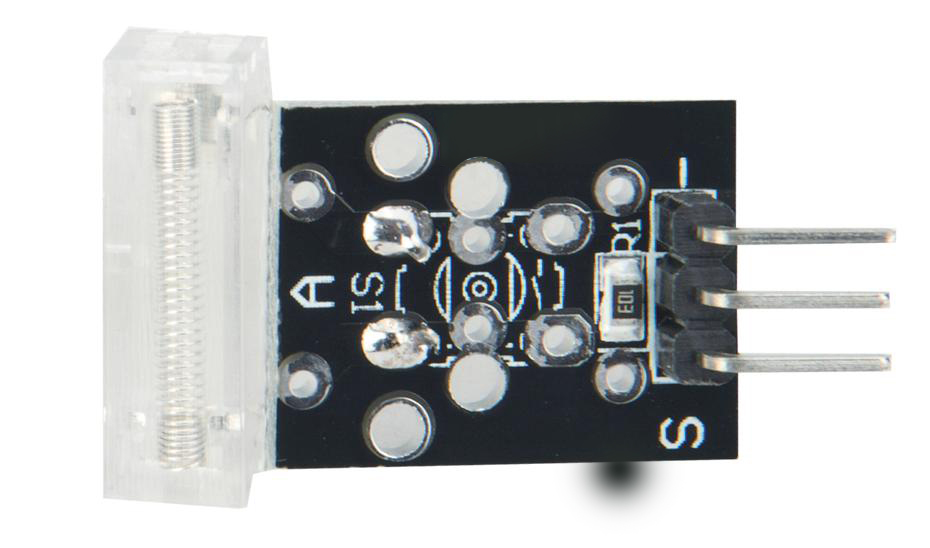

Hit Sensor Module SE020

Hit Sensor Module

SE020

This module also called knock switch, if you hit this module, the signal pin would pinout High level signal.

• Operation voltage: 5V
• 3Pin
• Size:28x15mm
• Weight: 3g

Easy Ball Switch sensor SE023

Easy Ball Switch sensor

SE023

This module called Ball switch sensor. When this module be tilted, it will output low or high signal for your control. Its similar with the Ball Switch Sensor(SE059), the difference is that this module has one indicator light, which would be on when this module’s voltage signal is changed.

• Operation voltage: 3.3~5V DC
• With 3-Pin Jumpers
• Size: 25 x 15mm
• Weight: 4g

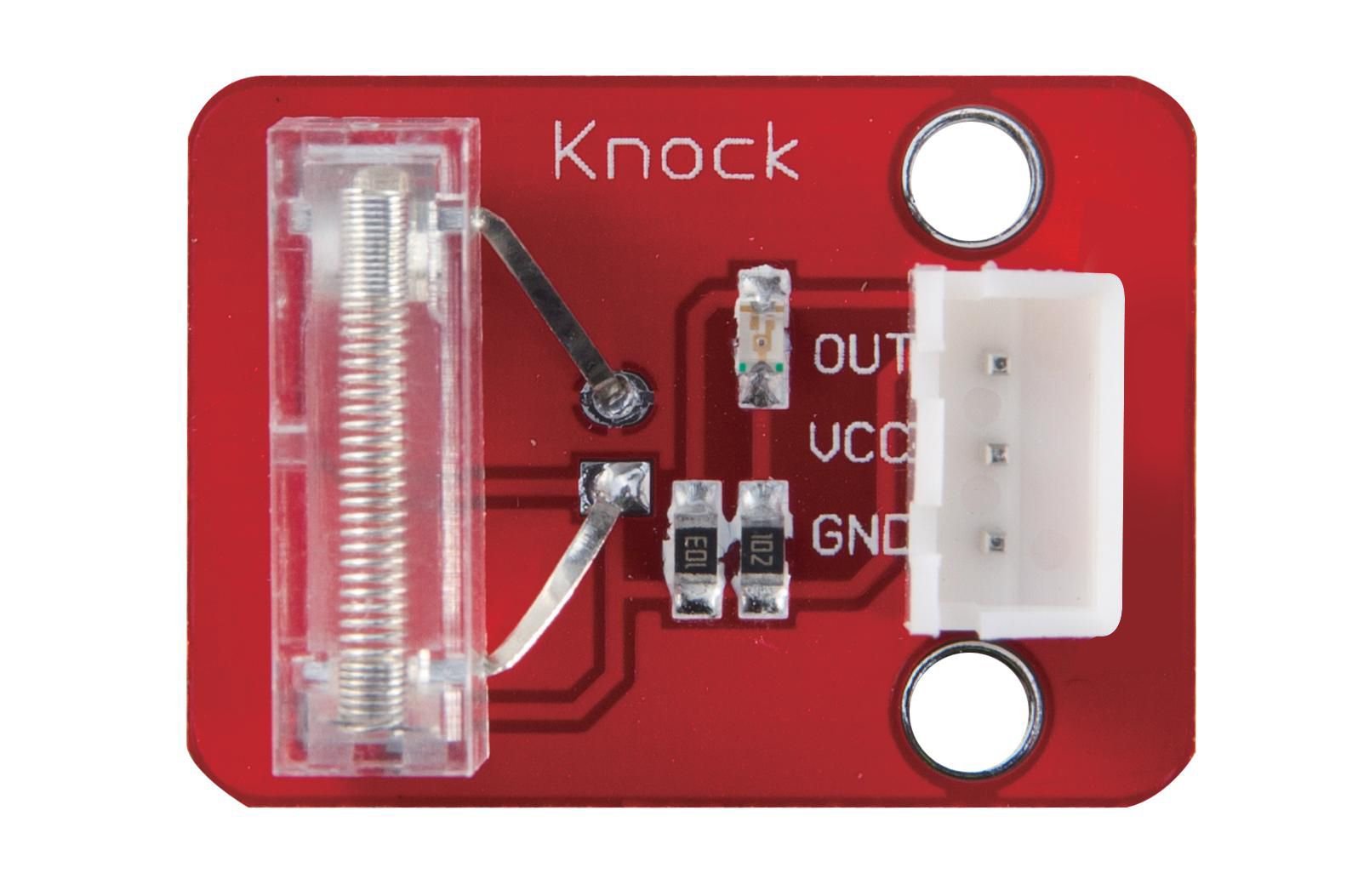

Easy Hit Sensor Module SE024

Easy Hit Sensor Module

SE024

This module also called knock switch, if you hit this module, the signal pin would pinout High level signal. It’ similar with the Hit Sensor Module (SE020), the difference is that this module has one indicator light, which would be on when this module’s voltage signal is changed.

• Operation voltage: 3.3~5V DC
• With 3-Pin Jumpers
• Size: 25 x 15mm
• Weight: 4g

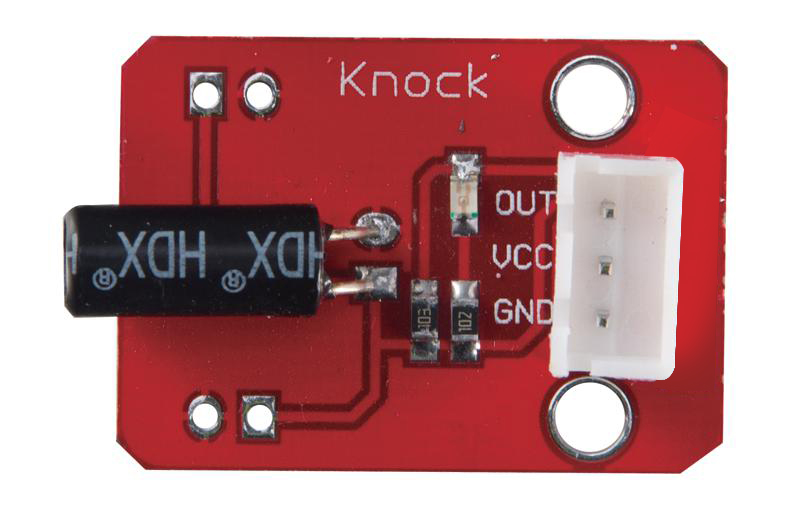

Easy Vibration Shock module SE025

Easy Vibration Shock module

SE025

This module is a shock switch module, and if it can detect a jolt, it output low level signal. It’ similar with the Vibration Shock module (SE053), the difference is that this module has one indicator light, which would be on when this module’s voltage signal is changed.

• Operation voltage: 3.3~5V DC
• With 3-Pin Jumpers
• Size: 25 x 15mm
• Weight: 4g

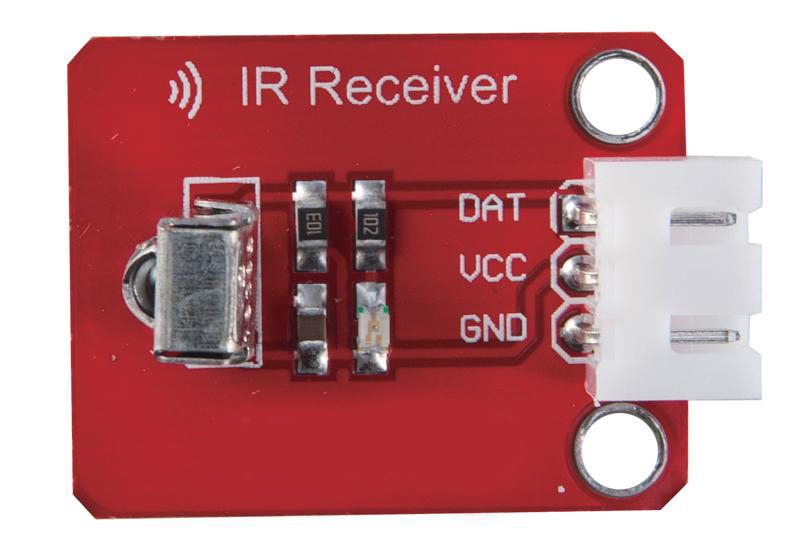

Easy IR Receiver Module SE027

Easy IR Receiver Module

SE027

This module usually used together with the IR transmit Module, it can read infrared light value. Its similar with the IR Receiver Module (ST1089), the difference is that this module has one indicator light, which would be on when this module’s voltage signal is changed.

• Operation voltage: 3.3~5V DC
• With 3-Pin Jumpers
• Size: 25 x 15mm
• Weight: 4g

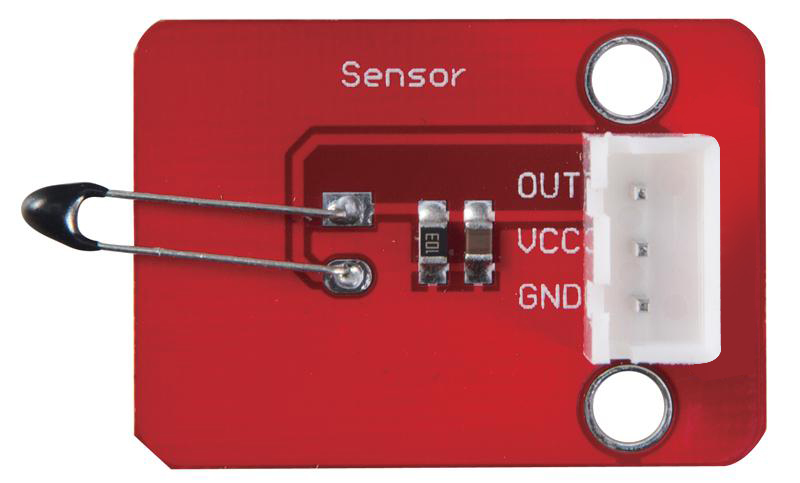

Easy Analog Temperature Sensor SE026

Easy Analog Temperature Sensor

SE026

A thermistor is a type of resistor whose resistance is dependent on temperature, more so thanin standard resistors. The word is a portmanteau of thermal and resistor. Thermistors are widely used as inrush current limiter, temperature sensors (NTC type typically), self-resetting overcurrent protectors, and self-regulating heating elements. It’ similar with the Analog Temperature Sensor (ST1147), the difference is that this module has one indicator light, which would be on when this module’s voltage signal is changed.

• Model No.: NTC-MF52 3950
• Temperature Range: -55°C~+125°C
• Accuracy: +/- 0.5°C
• Pull-up resistor: 10KΩ

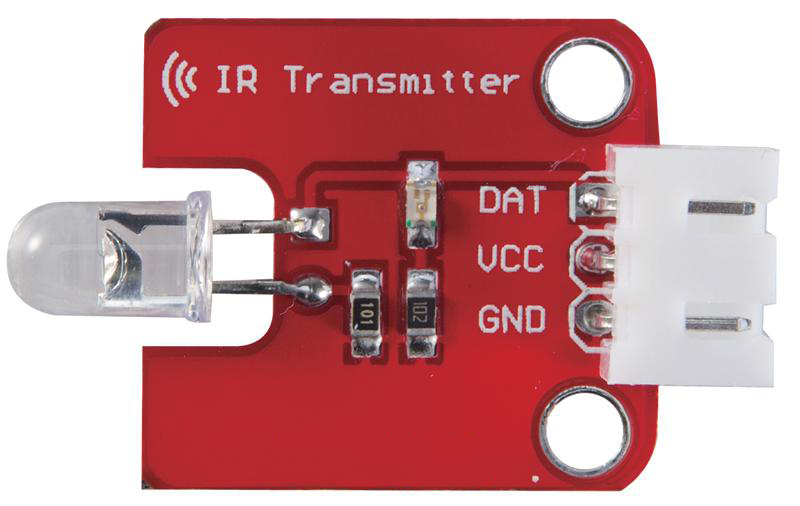

Easy IR Transmitter Module SE028

Easy IR Transmitter Module

SE028

This module usually used together with the IR Receiver Module, this module’s application are very wide in our common life. It’ similar with the IR Transmitter Module (ST1087), the difference is that this module has one indicator light, which would be on when this module’s voltage signal is changed.

• Operation voltage: 3.3~5V DC
• With 3-Pin Jumpers
• Size: 25 x 15mm
• Weight: 4g

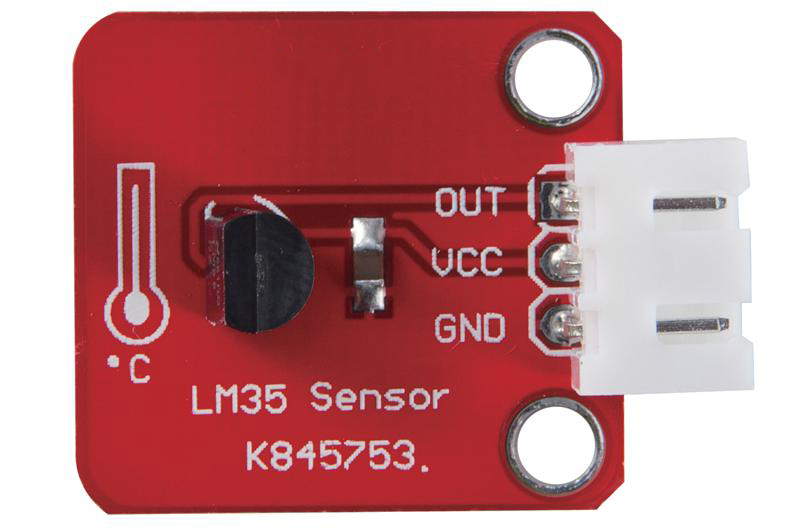

Easy LM35 Temperature Sensor SE030

Easy LM35 Temperature Sensor

SE030

This module is temperature sensor with chip LM35, It’s different from other NTC-MF523950 temperature sensor(ST1147) or DS18B20 temperature sensor(SE029). This module has one indicator light, which would be on when this module’s voltage signal is changed.

• Chip: Lm35
• Temperature Range: -55°C~+150°C
• Accuracy: +/- 0.5°C
• Voltage: 5V DC
• Size: 27 x 20 x 10mm

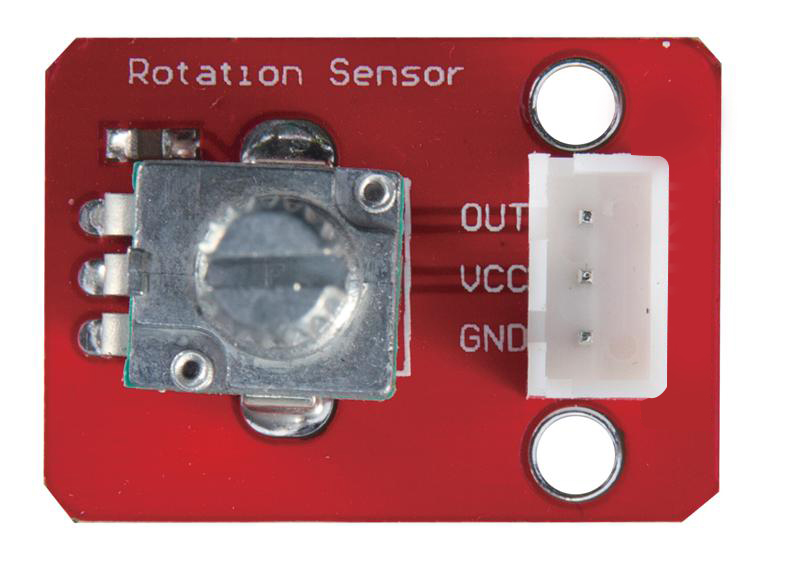

Easy Rotation Sensor Module SE031

Easy Rotation Sensor Module

SE031

This module is a multi-turn precision potentiometer, it can sense the rotation of your control, which is widely used in some control,like adjusting the intensity of light or voice. This module has one indicator light, which would be on when this module’s voltage signal is changed.

• Operation voltage: 3.3~5V DC
• With 3-Pin Jumpers
• Size: 25 x 15mm

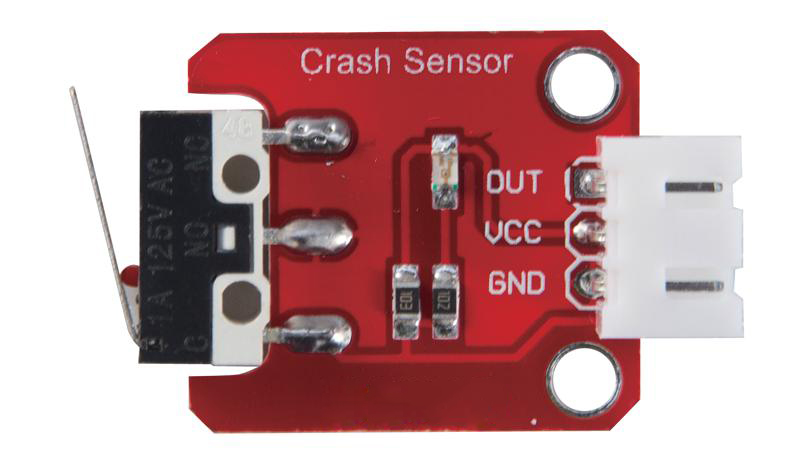

Easy Crash Switch sensor SE032

Easy Crash Switch sensor

SE032

This module called Crash switch sensor. When this module be crash, it will output low or high signal for your control. Sometimes we call this limited switch, it’s widely used in somewhere one object’s motion is stopped to certain location. This module has one indicator light, which would be on when this module’s voltage signal is changed.

• Operation voltage: 3.3~5V DC
• With 3-Pin Jumpers
• Size: 25 x 15mm

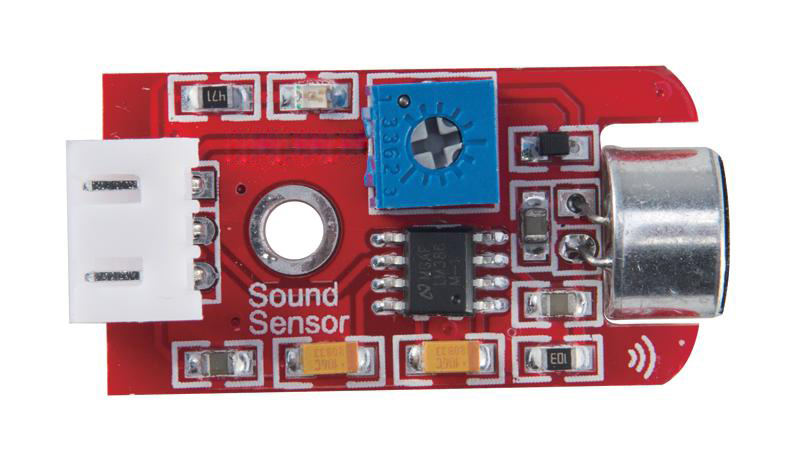

Easy Large Microphone Module SE036

Easy Large Microphone Module

SE036

It’s a high sensitivity sound detection module, when it detect some sound up to certain threshold, it can output High or Low level. This module has one indicator light, which would be on when this module’s voltage signal is changed.

• Voltage: 5V/3.3V
• there is a mounting screw hole 3mm
• the use 5v DC power supply
• high sensitive microphone and high sensitivity.

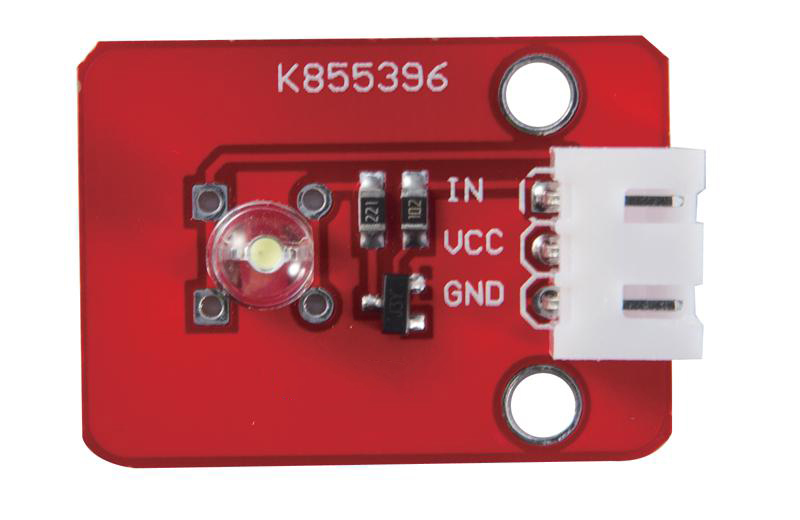

Easy Hat LED Module SE058

Easy Hat LED Module

SE058

This module is a white LED module, the shape of the led looks like a hat. The brightness of the LED can be controlled by the input pin. This module has integrated 3-pin terminal, which can be simply and tidily connected with Arduino sensor expansion board,

• Operation voltage: 3.3~5V DC
• With 3-Pin Jumpers
• Size: 25 x 15mm
