Moudle for Arduino (6)

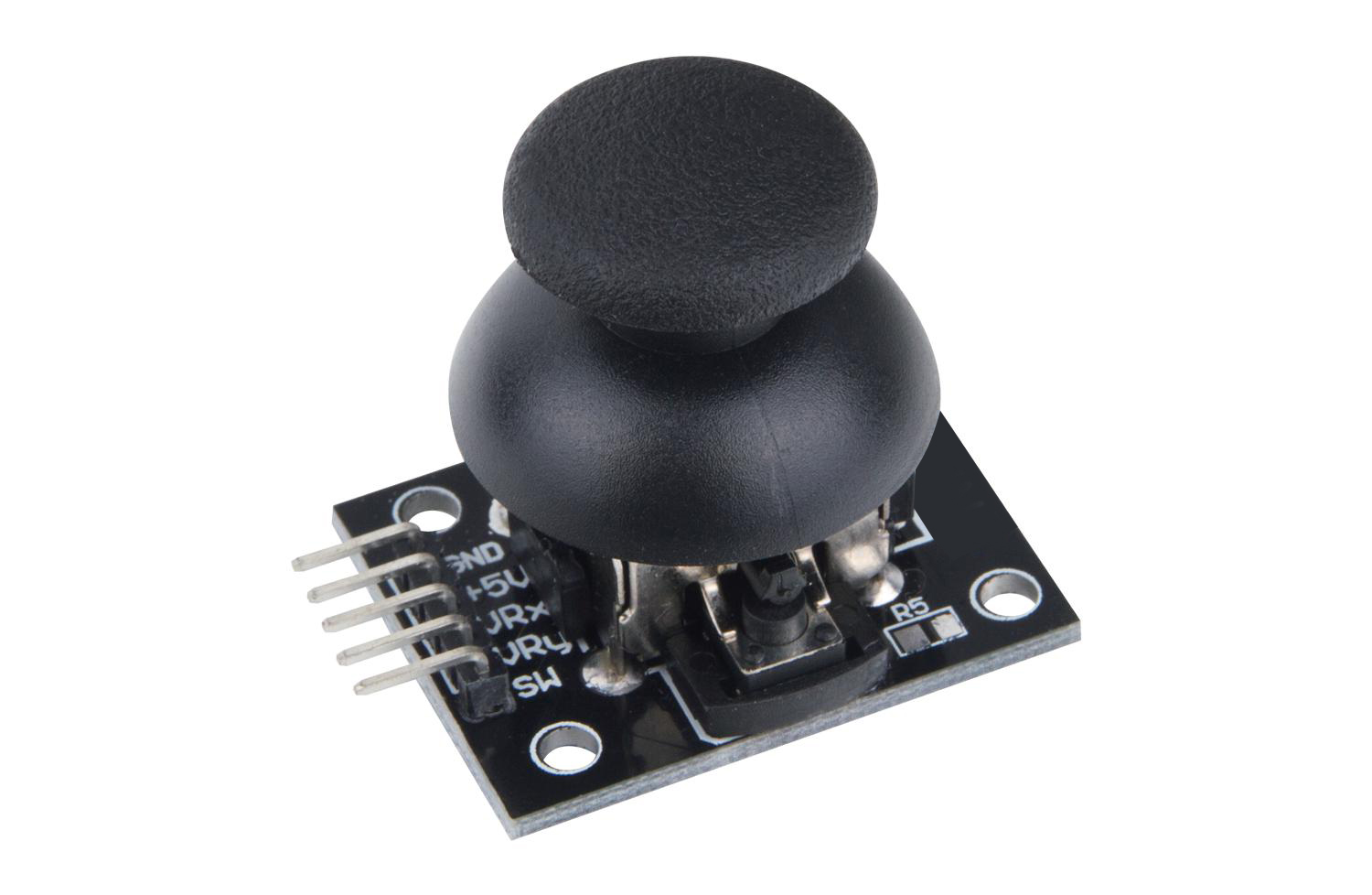

Joystick module

ST1079

This joystick module maybe the best choice for your controller of DIY project. It has two analog input pins to control X, Y axis and also has button input, someone may call it Z axis, but it only input digital signal with 0 or
• Two analog pin(X, Y axis), one digital pin(button). • Input voltage: 5V • Output voltage: 2.5V • Size: 37x25x32mm • Weight: 8g

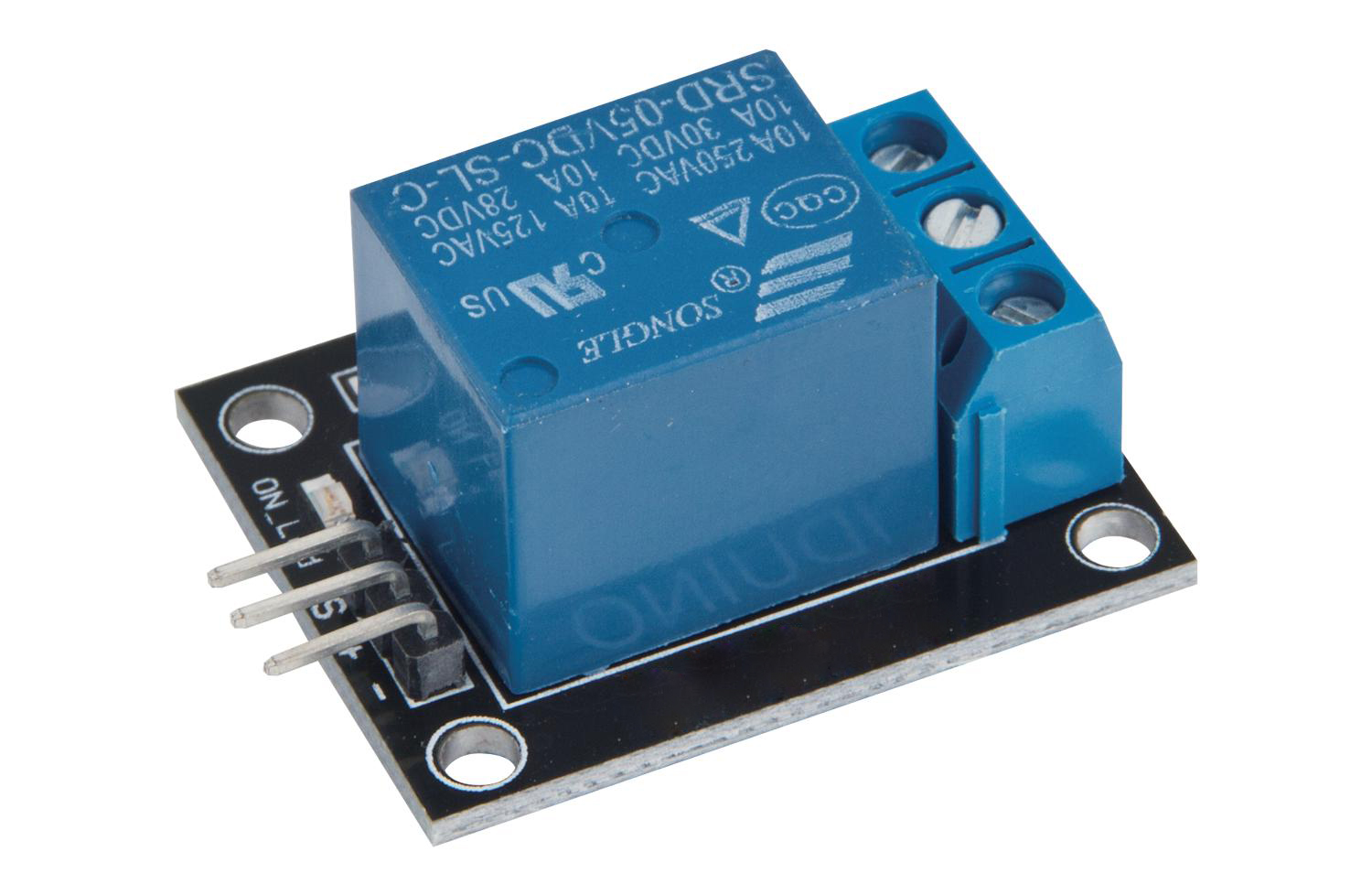

Relay Module

ST1080

The module is uses SRD relay module to control high-voltage electrical device. It can be used in interactive projects and can also be used to control the lighting, electrical and other equipment. It can be controlled directly by a wide range of microcontrollers and can be controlled through the digital IO port, such as solenoid valves, lamps, motors and other high current or high voltage devices.

• Number of I/O Channels: 1 • Input Voltage: 5V DC • Type: Digital • Control signal: TTL level • Indication LED for Relay’s Status

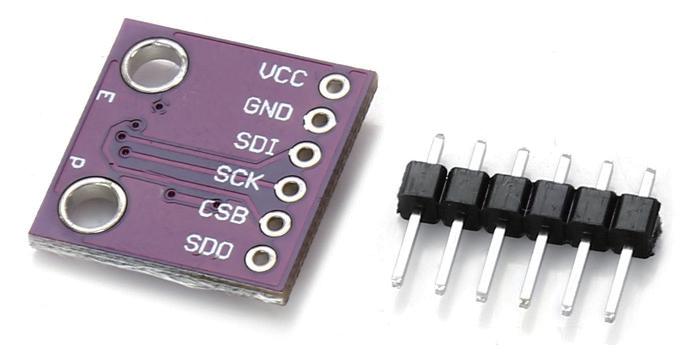

BMP280 Pressure Sensor Module

AD092

Bosch has stepped up their game with their new BMP280 sensor, an environmental sensor with temperature, barometric pressure that is the next generation upgrade to the BMP085/BMP180/BMP183. This sensor is great for all sorts of weather sensing and can even be used in both I2C and SPI! PCB size:(L x W)1.52×1.20cm/0.60″x0.47″

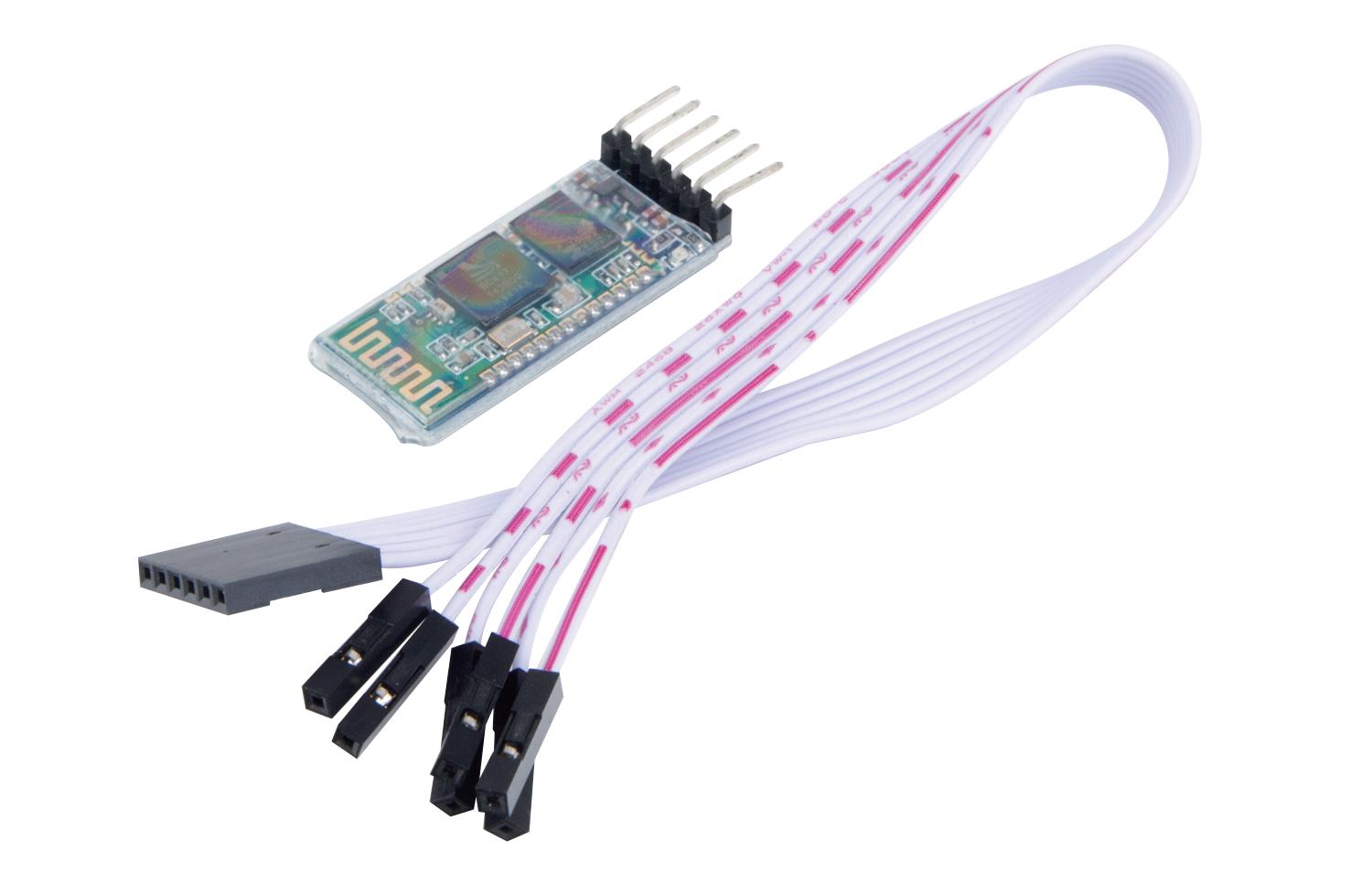

Bluetooth HC-05 Transmission Module

ME081

Bluetooth is a wireless technology standard for exchanging data over short distances (using short-wavelength UHF radio waves in the ISM band from 2.4 to 2.485 GHz) from fixed and mobile devices, and building personal area networks (PANs). Range is approximately 10 Meters (30 feet).

• 2.45Ghz Frequency • Asynchronous Speed 2.1Mbps(max) .160Kbps • Security: Authentication • Profile: Bluetooth Serial Port • Power Supply: +3.3 VDc • Working Temperature: >20C • Cost : Around INR 300

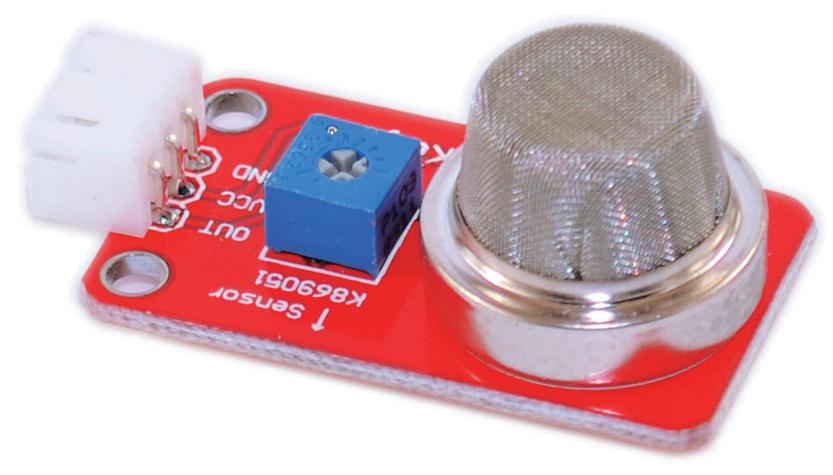

MQ-2 smoke sensor

ME133

• Working voltage: DC 5V; • Output signal: Stimulation signal Application Smoke: liquefied petroleum gas, butane, propane, methane, alcohol hydrogen, natural gas, etc gas detection

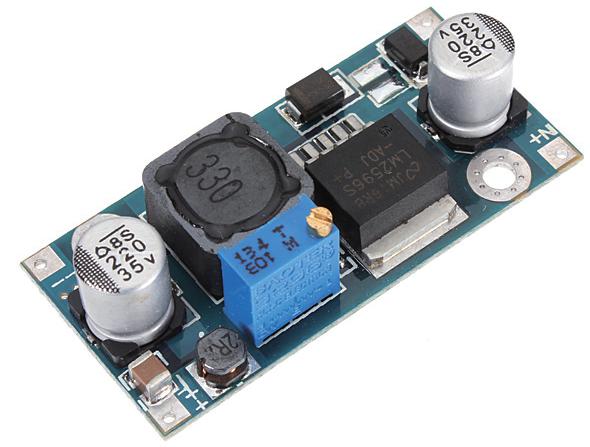

DC Step-down Adjustable voltage module

ME134

• Input voltage: 3V-40V • Output voltage: 1.3V-35V • Output current: Rated current is 2A, maximum 3A(Additional heatsink is required)

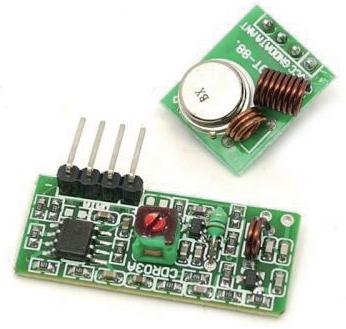

433MHz transmitter receiver module

ME135

Receiver module
• Product Model: XD-RF-5V • Operating voltage: DC5V • Quiescent Current: 4MA • Receiving frequency: 433.92MHZ • Receiver sensitivity: -105DB • Size:30x14x7mm
Transmitter Technical parameters of
• Product Model: XD-FST • Launch distance: 20-200 meters (different voltage, different results) • Operating voltage :3.5-12V • Dimensions: 19x19mm
• Operating mode: AM • Transfer rate: 4KB / S • Transmitting power: 10mW • Transmitting frequency: 433M • Pinout from left → right: (DATA; VCC; GND)

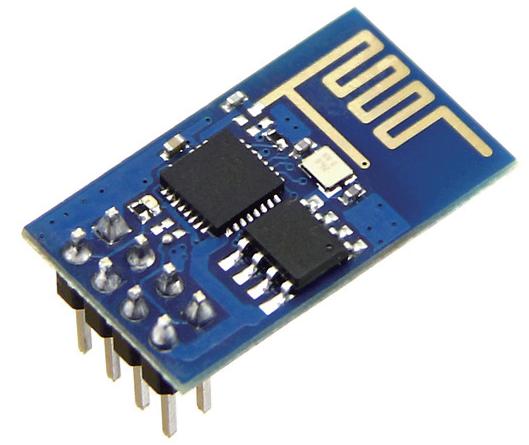

ESP8266 WIFI wireless module

ME136

Feature:
It run LWIP 802.11 bgn WIFI Direct (P2P),SOFT-AP Built-in TCP/IP The AT command is perfect, efficient, conciseSupport three modes: AP, STA and AP+STA coexistence mode

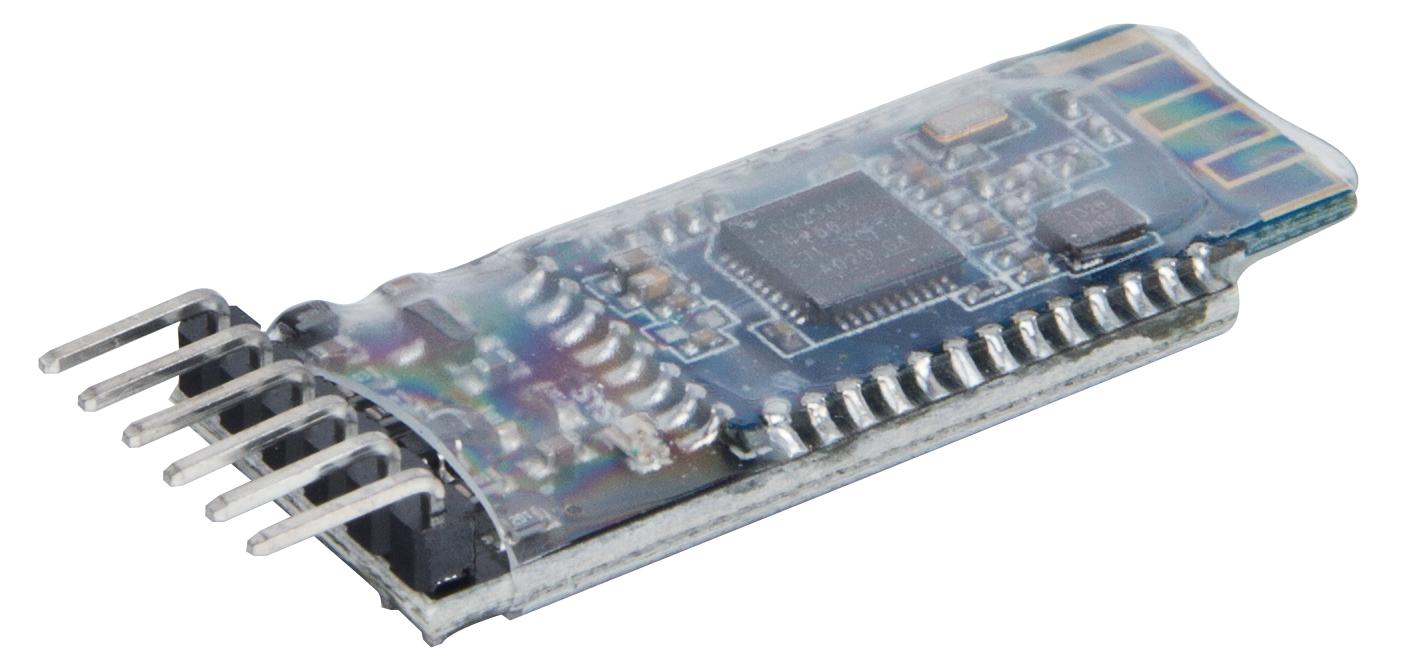

Bluetooth 4.0 HM-10 Master Slave Module

AD099

• Bluetooth Protocol: Bluetooth Specification V4.0 BLE • USB Protocol: USB V2.0 • Operating Frequency: 2.4GHz ISM band
• Transmission Rate: Asynchronous: 6 kbps • Synchronous: 6 kbps • Security Feature: Authentication and encryption • Power Supply: +3.3VDC 50mA

Bluetooth Bee HC-06 Slave Module ME116

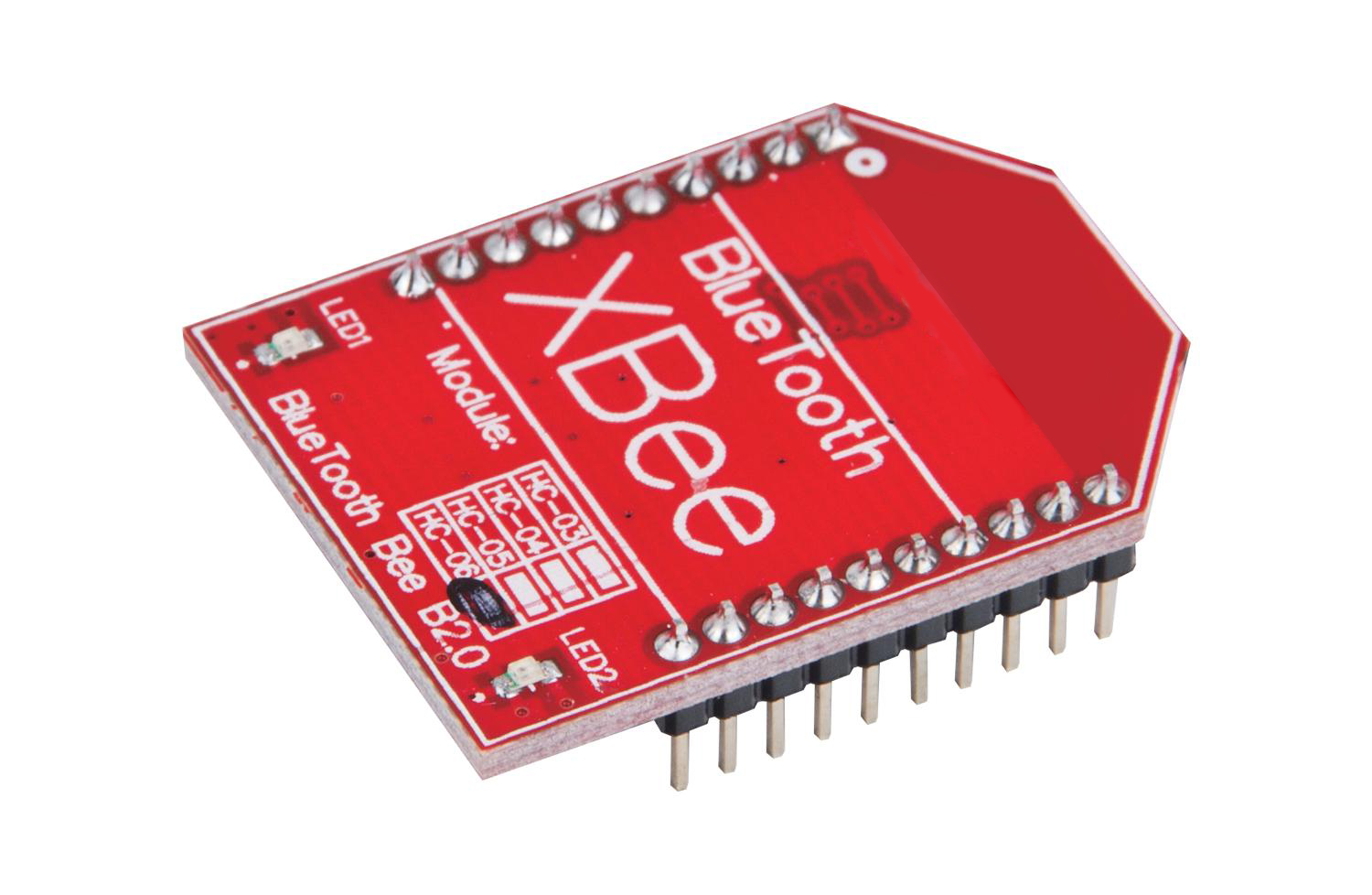

Bluetooth Bee HC-05 Master/ Slave Module AD100

Bluetooth Bee is designed for transparent wireless serial connection setup. This is a fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps modulation with complete 2.4GHz radio transceiver. It uses CSR Bluecore4-external single chip Bluetooth system with CMOS technology and with AFH (Adaptive Frequency Hopping). It can be configured to Master, Slave or Loopback three different modes and it will connect to or be connected by other devices that support SPP protocol per configuration, and it is a suitable substitute for most applications.

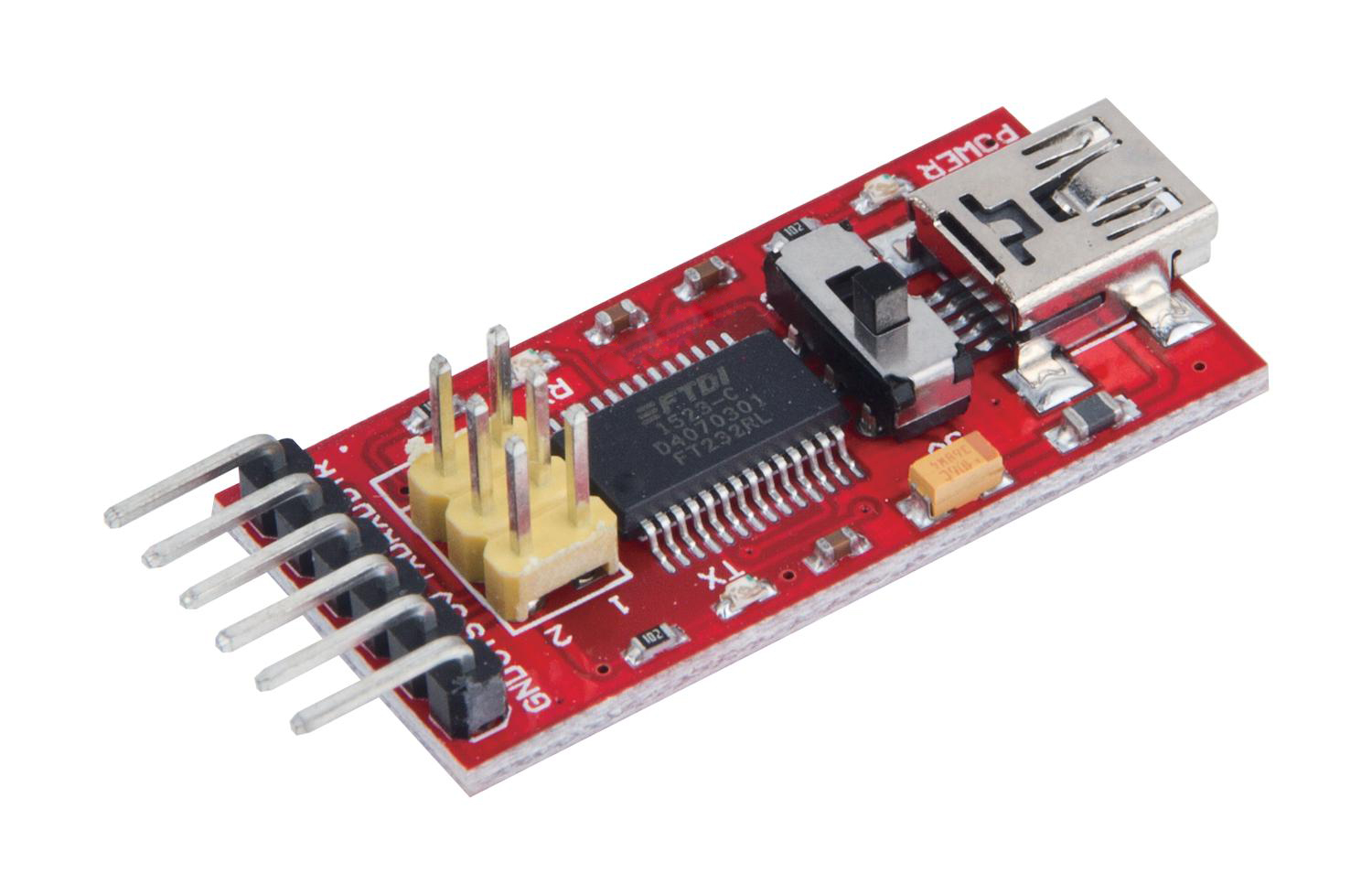

5.FTDI Basic Program Downloader USB to TTL FT232 for Arduino

ST1125

• Standard interface, compatible with a variety of official Arduino controller • Original FT232 chip, stable performance • With power, sending, receiving indicator, working status • With 3.3V and 5V power supply options

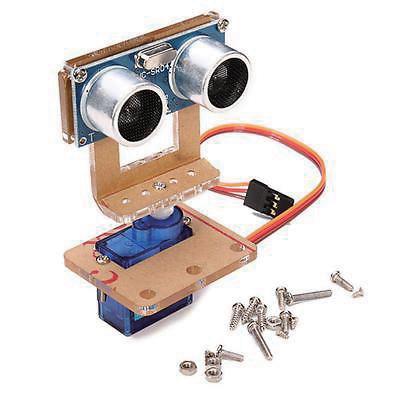

HC – SR04 Ultrasonic Sensor with Mounting Bracket SG90 Servo for Arduino Distance
Measuring

AC028

• Thickness of acrylic mounting bracket: 4mm • Operating voltage: DC 5V • Quiescent current: Less than 2mA • Voltage output: High 5V, low 0V • Detection angle: Less than 15 degree • Detection distance: 2cm – 450cm • Accuracy: 3mm
