Moudle for Arduino (9)

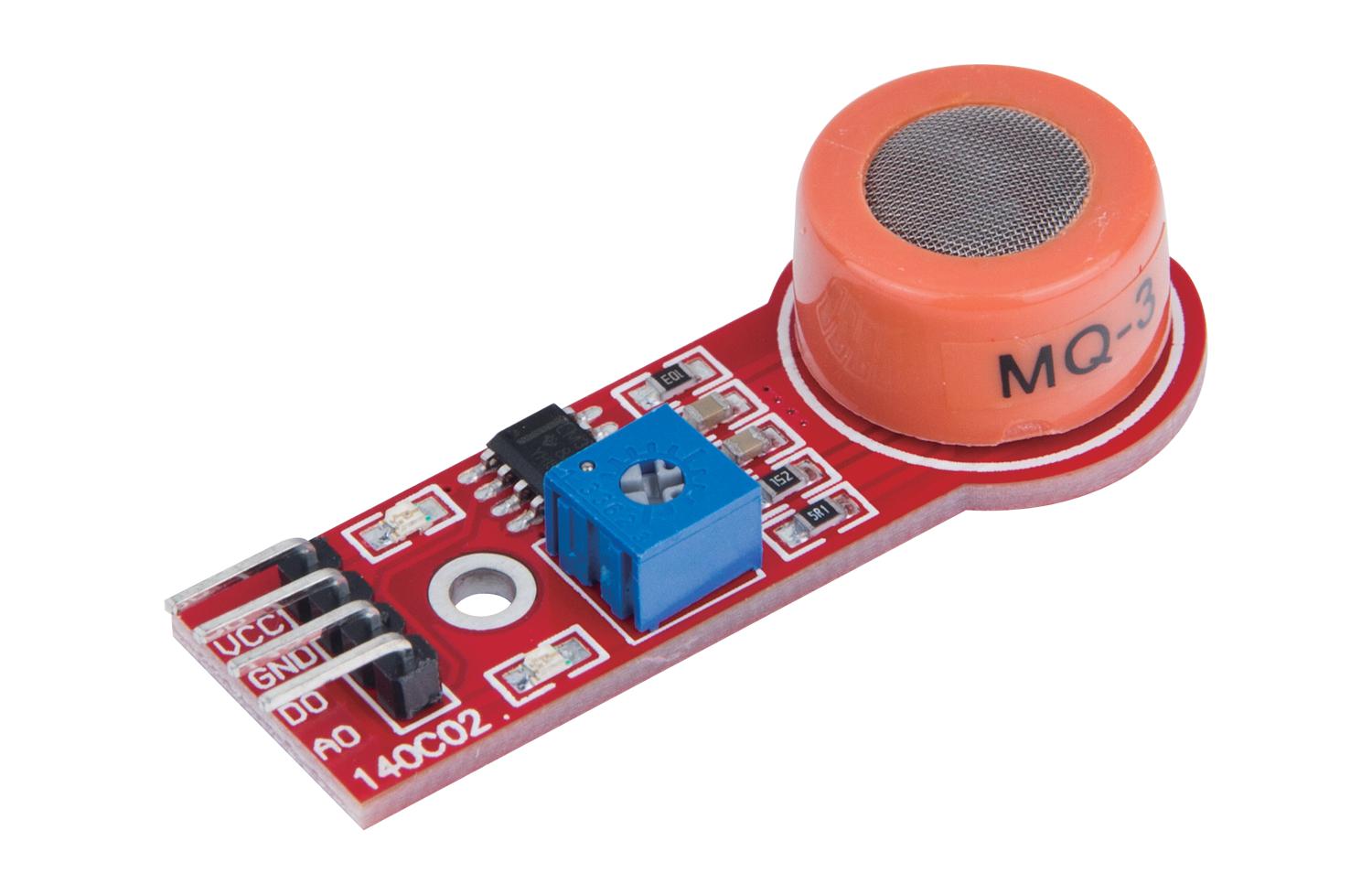

Alcohol Sensor Module

ME075

The sensor can detect various concentration of alcohol. It is a low-cost sensor suitable for many applications: alcohol (ethanol) detection, used for on-site testing for motor vehicle drivers, and other no-drinking occasions, also used for ethanol vapor detection.

• Outputs: Analog& Digital • Sensitivity: Adjustable • Operating Voltage: 5V DC • Dimensions: 50 x 20 x 13mm

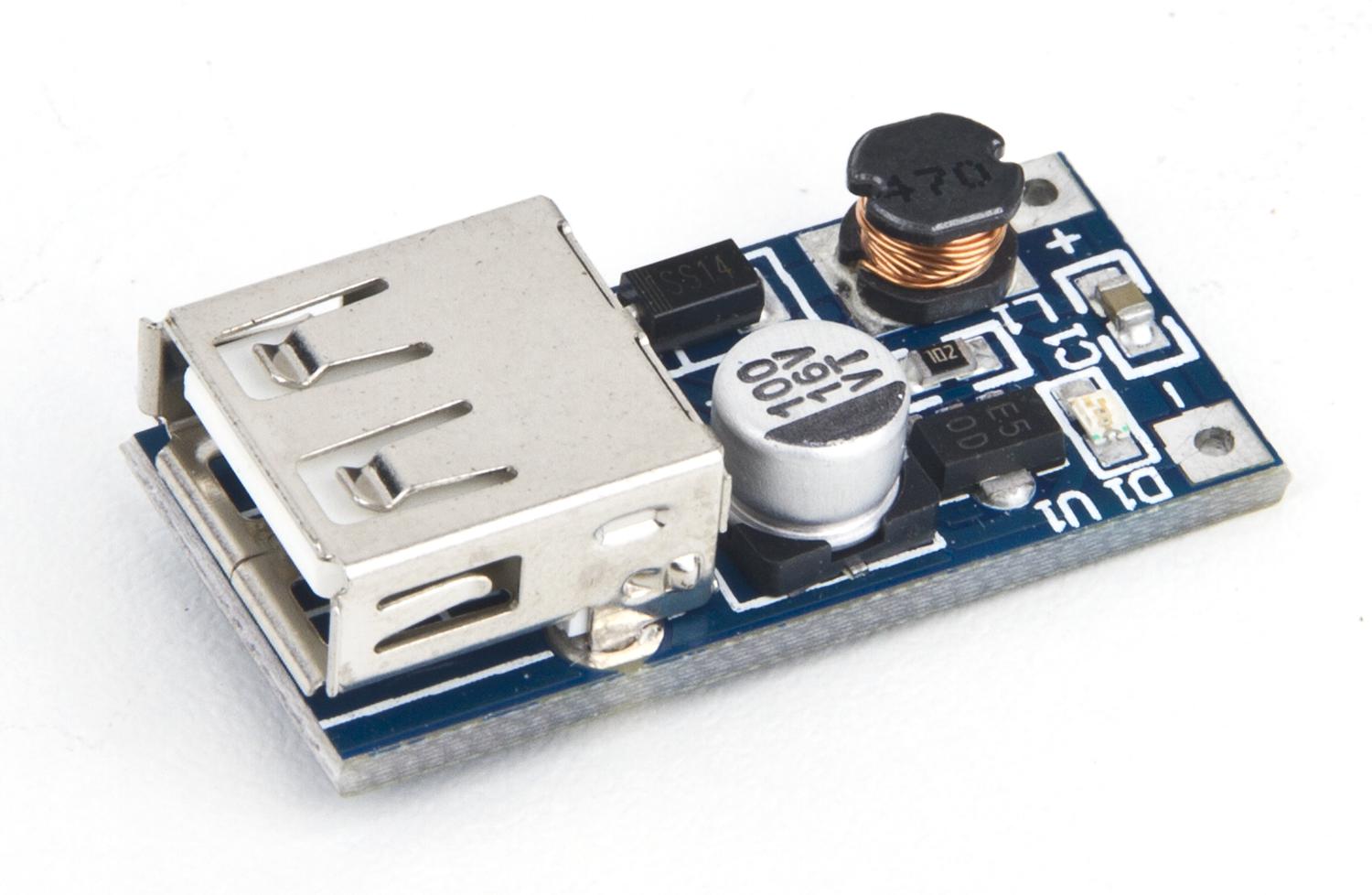

USB DC Voltage Step-up Boost Module

ME132

This module allow you input a DC voltage range from 2.5~5.0V to stably output 5V voltage through USB interface.

• Input Voltage: 2.5~5V DC • Output Voltage: 5V DC • Dimensions:34 x 16 x 8mm

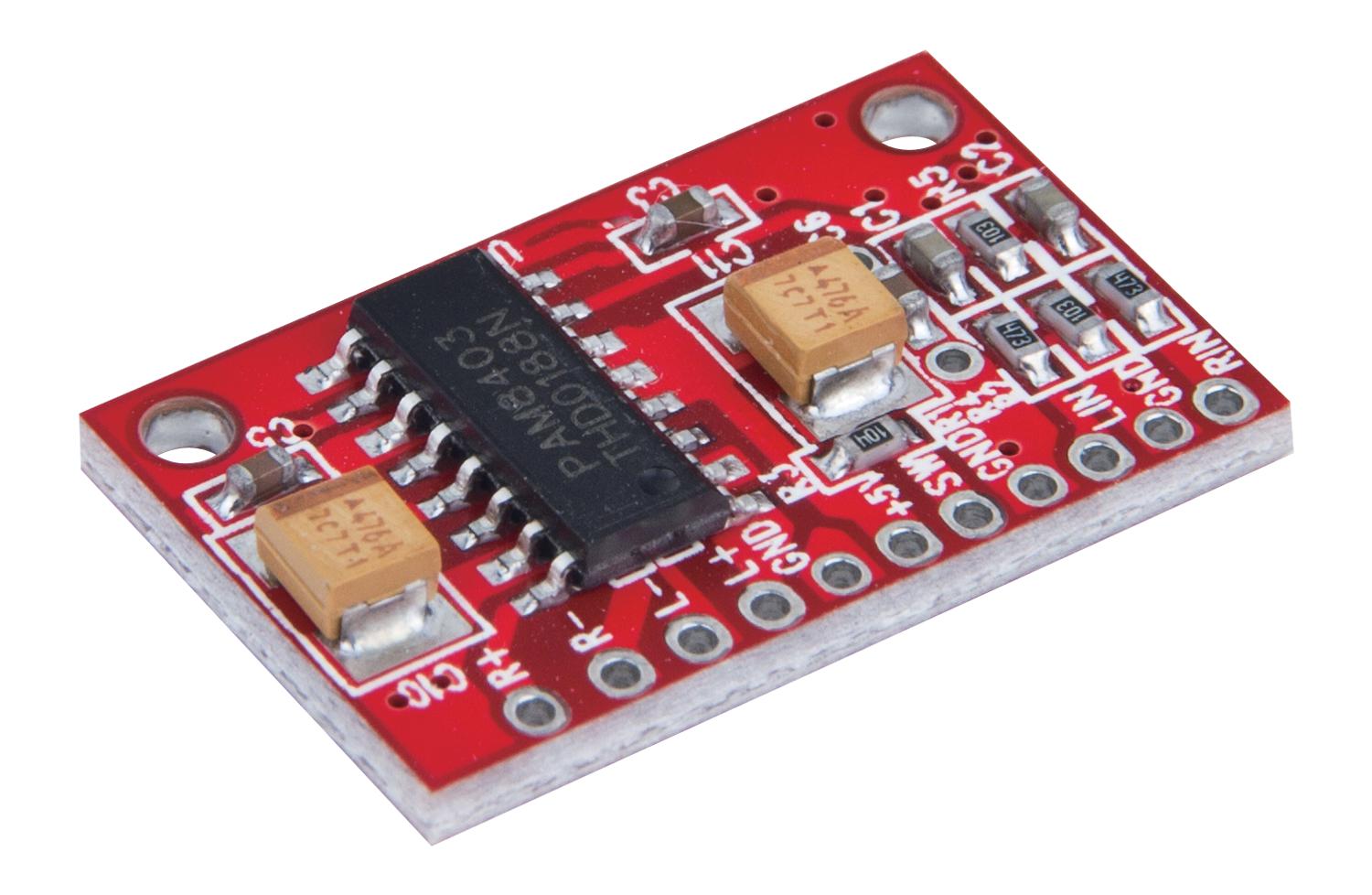

2-Channel 3W PAM8403 Audio Amplifier Module

ST1109

• Processor: PAM8403 IC • Operating Voltage: 2.5- 5.5V DC • Output Power: 2×3W, 4ohm • Efficiency: >90% • Amplifier Type: Class-D • Dimensions: 23 x 16 x 2mm

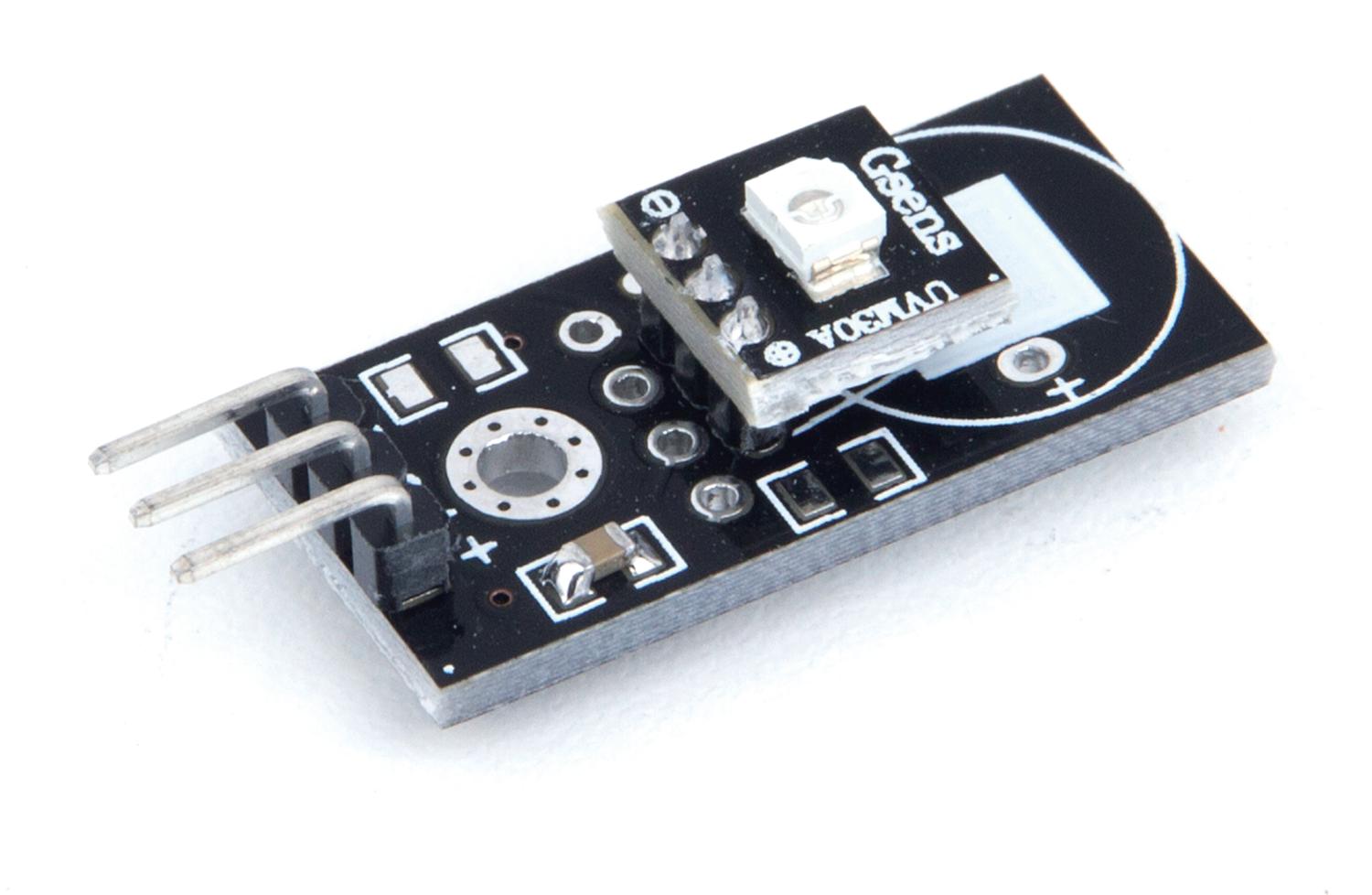

Ultraviolet Sensor Module

ME076

The UV Sensor is used for detecting the intensity of incident ultraviolet (UV) radiation. This form of electromagnetic radiation has shorter wavelengths than visible radiation. This module is based on the sensor UVM-30A, which has a wide spectral range of 200nm-370nm. The module outputs electrical signal which varies with the UV intensity, which gives your suggestion if it is a good idea to beach today.

• Working Voltage: 3V DC-5V DC • Output Voltage: 0~1200mV • Current: 0.06~0.1mA • Response Wavelength: 200-370nm
• Working Temperature: -20 to 85°C • Dimensions: 43 x 19 x 8mm

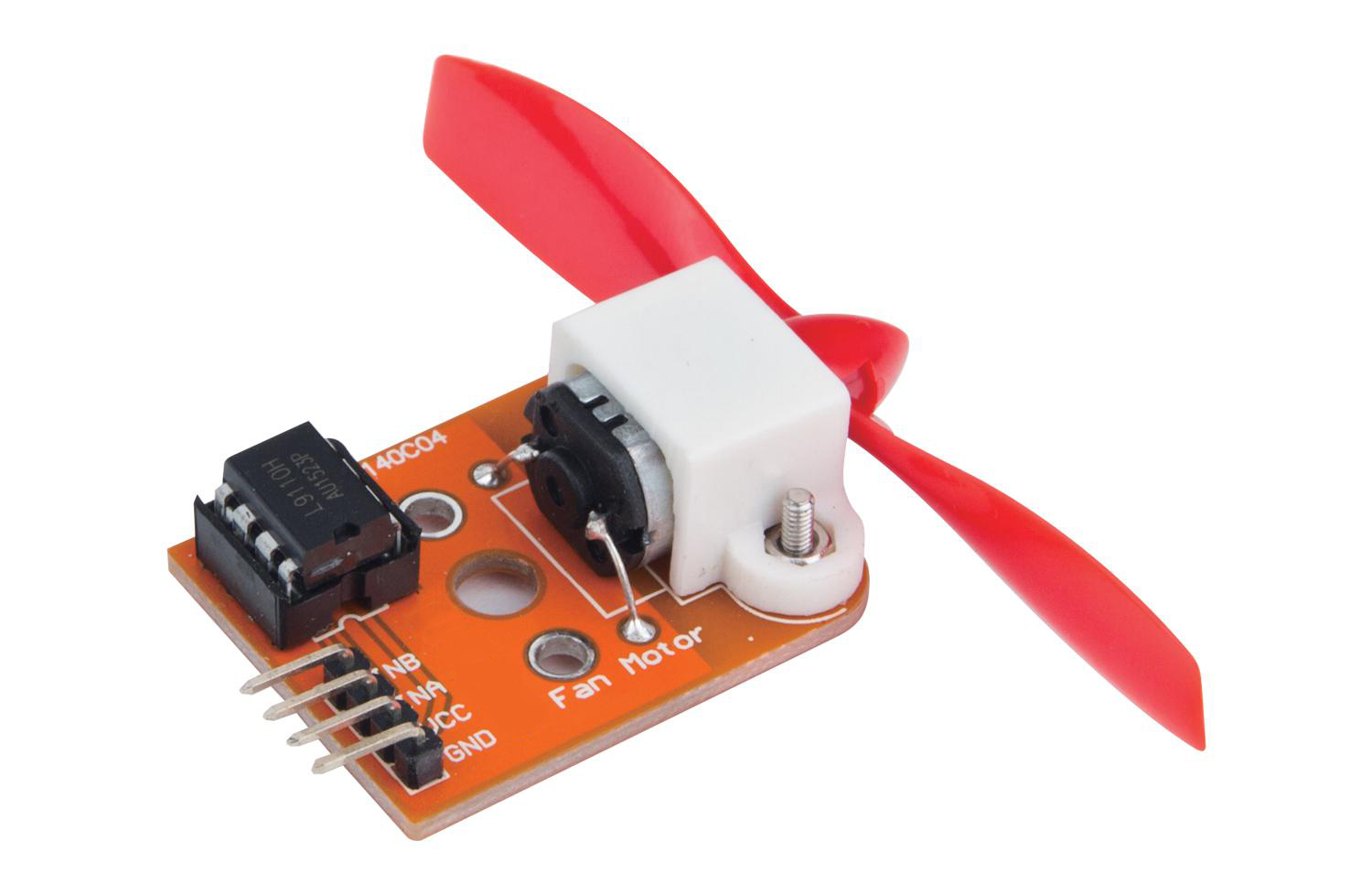

L 9110 Fan with Propeller Module

ST1162

• Propeller Size: 75mm diameter • Working Voltage: 5C DC • Header interface: 4 Pin • Dimensions: 29 x 22 x 10mm

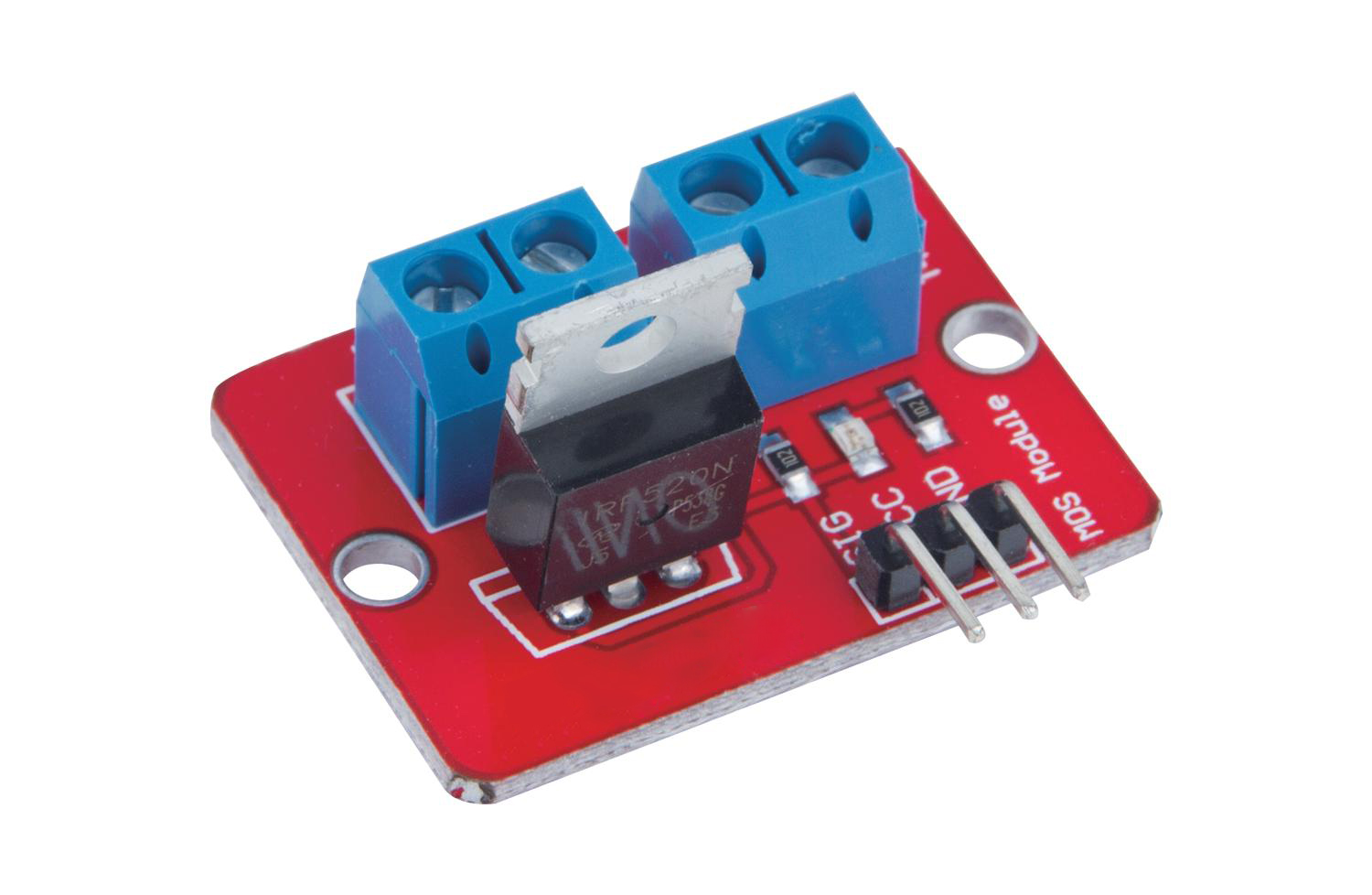

24V 5A MOS Driver Module

ST1168

This little module is a breakout board for the IFR520 MOSFET transistor. The module is designed to switch heavy DC loads from a single digital pin of your microcontroller. Its main purpose is to provide a low cost way to drive a DC motor for robotics applications, but the module can be used to control most high current DC loads. Screw terminals are provided to interface to your load and external power source.

• Operating Voltage: 3.3V DC &5V DC • Output Load Voltage: 0~24V DC • Output Current: 5A • Dimensions: 34 x 21 x 16mm

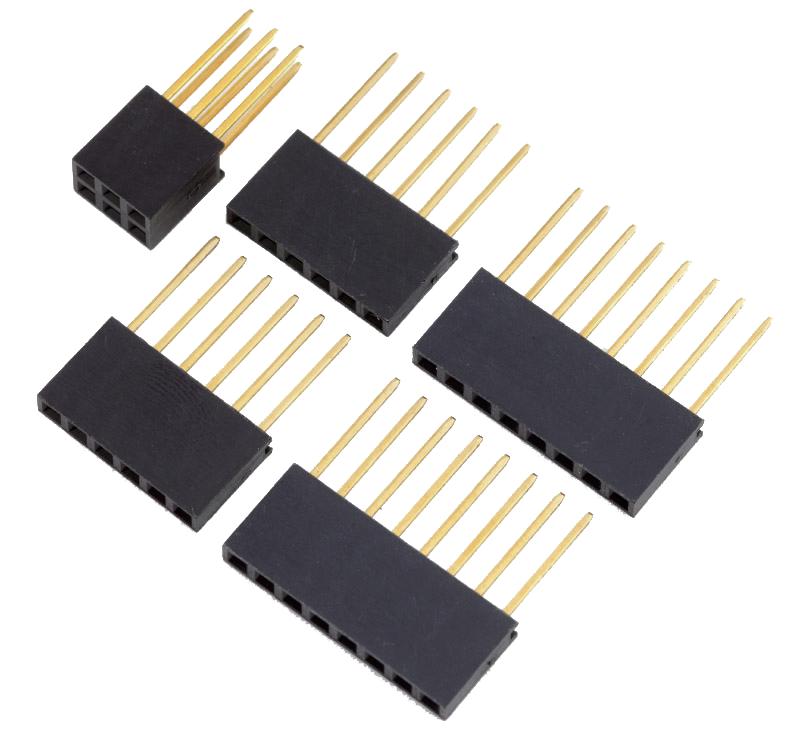

Stackable Header Set for Arduino

AC059

• 1 × 10-pin
• 2 × 8-pin
• 1 x 6-pin
• 1 x 2×3-pin (for ICSP)

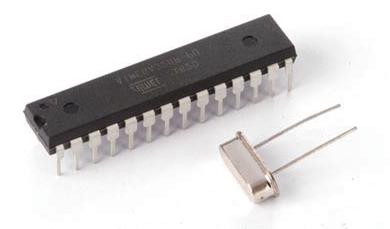

ATMEGA328P MCU IC with Arduino UNO Bootloader and 16MHz Crystal

AC060

• ATMEGA328P • 16MHz Crystal • pinout sticker

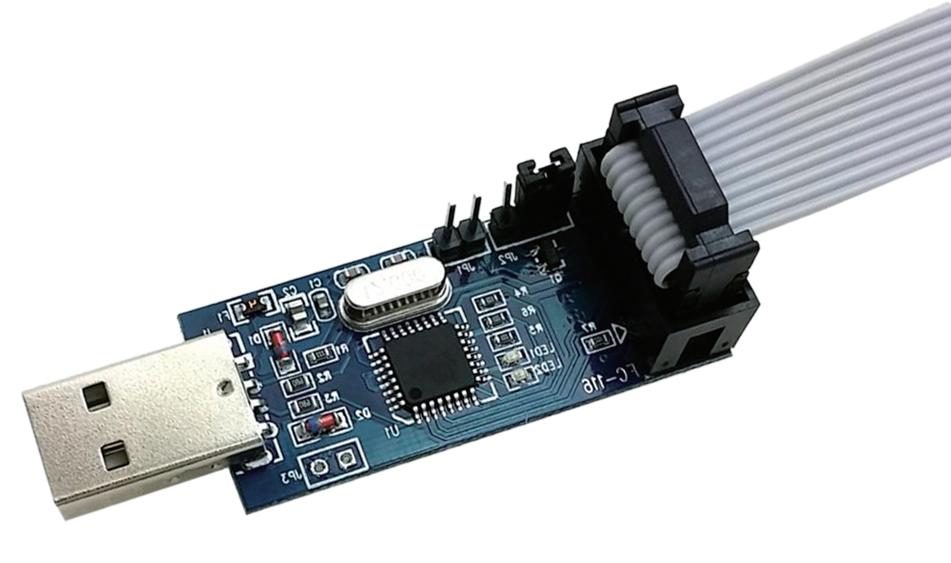

ISP AVR Programmer

AC063

• 51 Series: AT89S51, AT89S52,, AT89S53, AT89S8252
• AVR Series: ATTiny12 (L), ATTiny13 (V), ATTiny15 (L), ATTiny24 (V), ATTiny25 (V), ATTiny26 (L), ATTiny2313 (V), ATTiny44 (V), ATTiny45 (V), ATTiny84 (V), ATTiny85 (V), AT90S2313 (L), AT90S2323 (L), AT90S2343 (L), AT90S1200 (L), AT90S8515 (L), AT90S8535 (L), ATMEGA48 (V), ATMEGA8 (L), ATMEGA88 (V), ATMEGA8515 (L), ATMEGA8535 (L), ATMEGA16 (L), ATMEGA162 (V), ATMEGA163 (L), ATMEGA164 (V), ATMEGA165 (V), ATMEGA168 (V), ATMEGA169 (V), ATMEGA169P (V), ATMEGA32 (L), ATMEGA324 (V), ATMEGA325 (V), ATMEGA3250 (V), ATMEGA329 (V), ATMEGA3290 (V), ATMEGA64 (L), ATMEGA640 (V), ATMEGA644 (V), ATMEGA645 (V), ATMEGA6450 (V), ATMEGA649 (V), ATMEGA6490 (V), ATMEGA128 (L), ATMEGA1280 (V), ATMEGA1281 (V), ATMEGA2560 (V), ATMEGA2561 (V), AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2 (B) , AT90PWM3 (B)

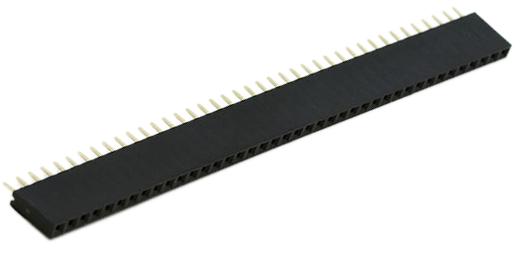

40Pin Single row female straight Header Socket

AC070

Pitch 2.54mm.

• Gender of Connector: Female • Number of Pins: 40 Pin • Type of Row: Single-Row • Type of connector: Straight

8 Channel Relay Board

AC074

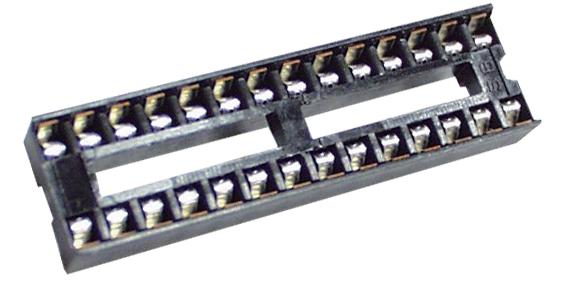

28pin socket for Atmega328P 0.3” wide (7.62mm)

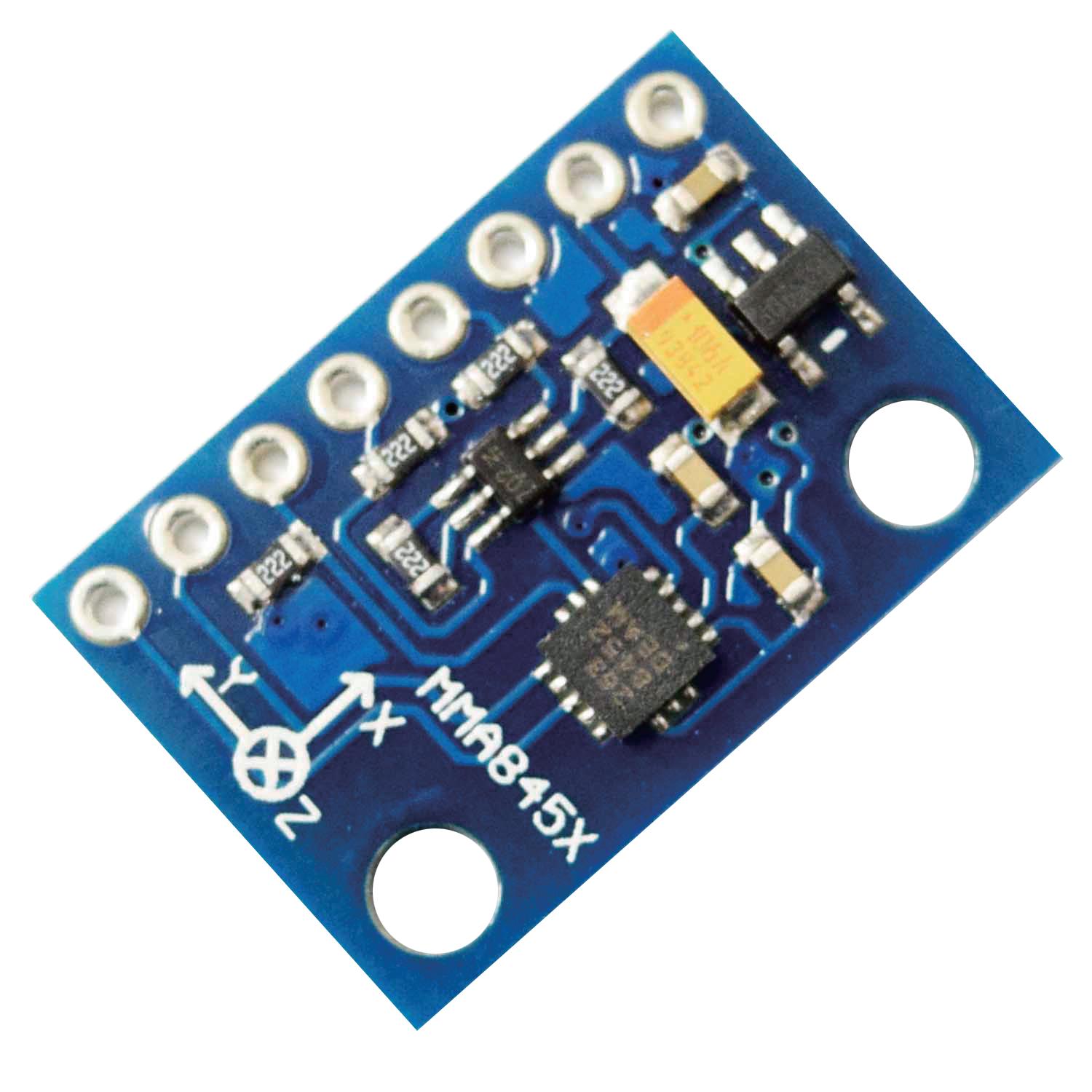

MMA8452 3-Axial Triaxial Digital Accelerometer Module (replace MMA7455)

ME227

1.95 V to 3.6 V supply voltage; • 1.6 V to 3.6 V interface voltage; • ±2g/±4g/±8g dynamically selectable full-scale; • Output Data Rates (ODR) from
1.56 Hz to 800 Hz; • 12-bit and 8-bit digital output; • I2C digital output interface (operates to 2.25 MHz with 4.7 kΩ pullup); • Two programmable interrupt pins for six interrupt sources; • Three embedded channels of motion detection; • Orientation (Portrait/Landscape) detection with set hysteresis; • High Pass Filter Data available real-time; • Current Consumption: 6 μA – 165 μA

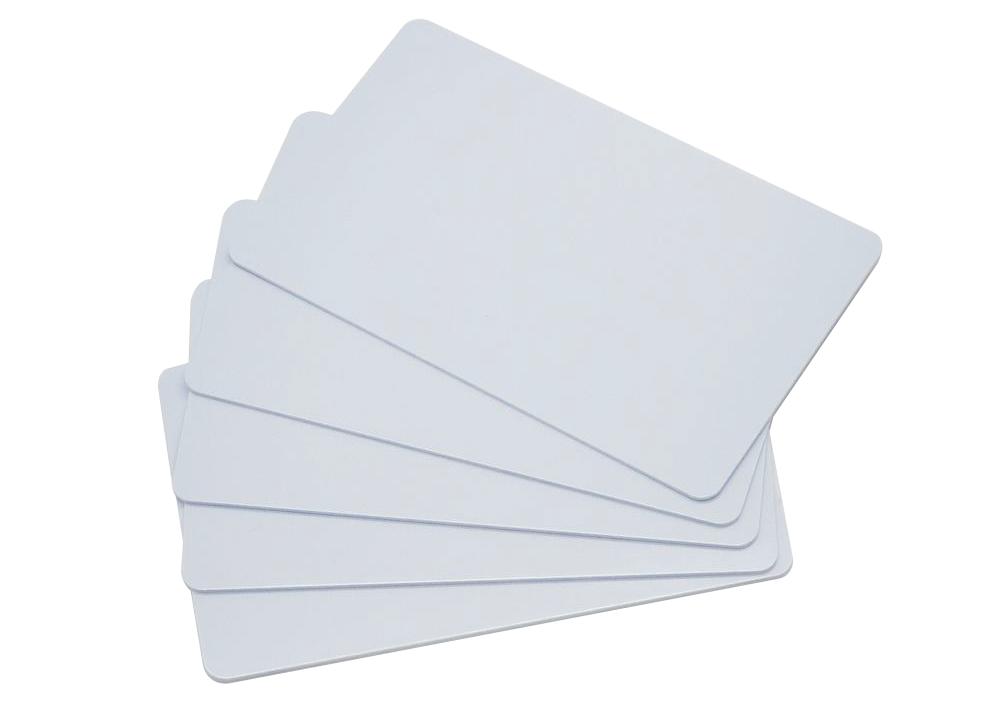

RFID card for ME138

AD081-2

Specification:

• Resonance Frequency: 13.56MHZ • Memory: 8K Bit EEPROM memory ISO14443 Type-A ; Mifare • Operating temp.range: -10°C- 50°C
