DIY Components for Maker (1)

2 Wheel Car Chassis

CC016

• Pre-Drilled mounting plates
• One-motor +gearbox per wheel
• Motor Voltage: 5-10V DC
• Dimensions: 215 x 160 x 100mm

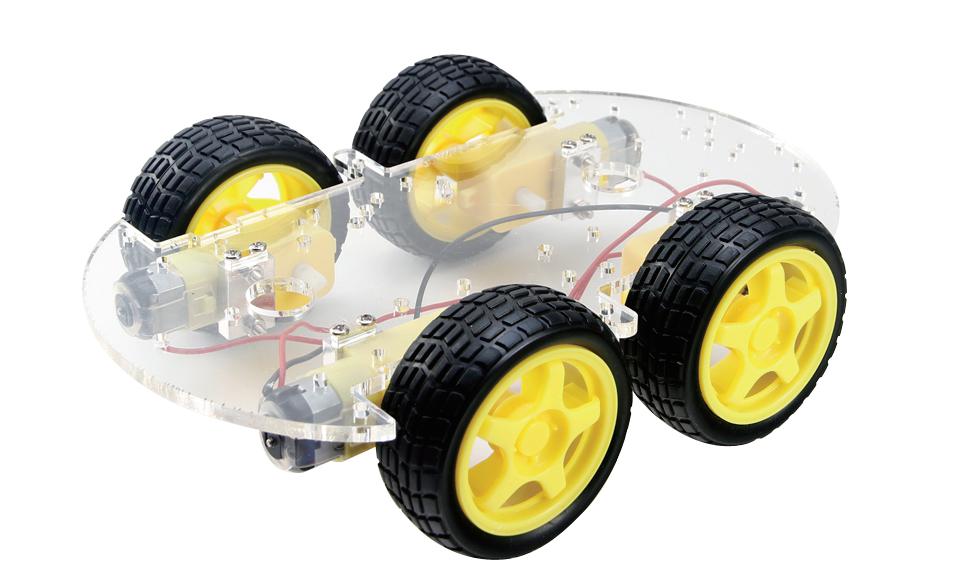

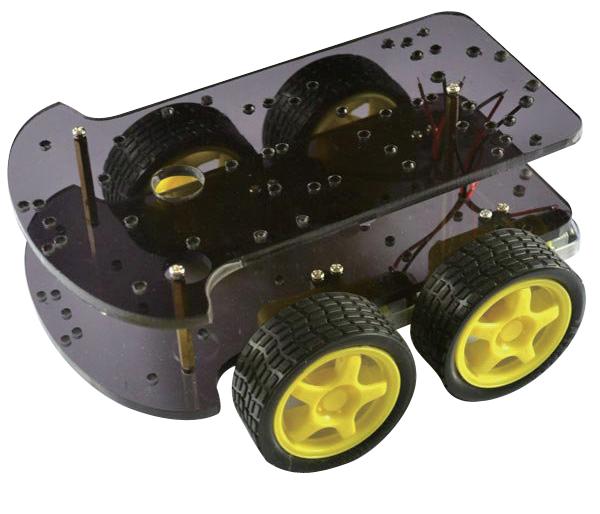

4 Wheel Car Chassis

CC018

• Pre-Drilled mounting plates
• One-motor +gearbox per wheel
• Motor Voltage: 5-10V DC
• Dimensions: 240 x 160 x 100mm

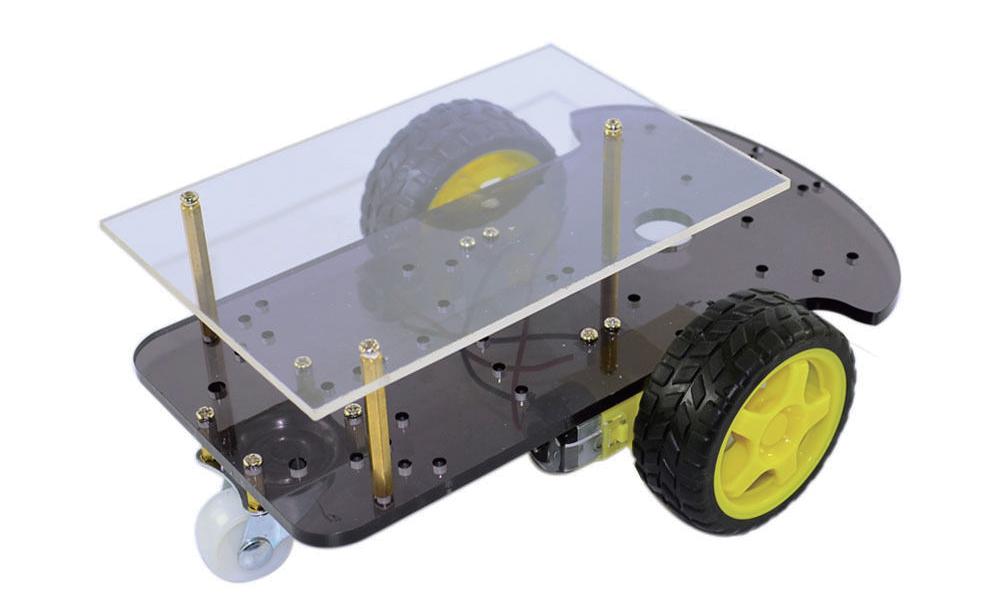

2 Wheel Car Chassis

CC022

• Pre-Drilled mounting plates
• One-motor +gearbox per wheel
• Motor Voltage: 5-10V DC
• Dimensions: 277 x 163 x 56mm

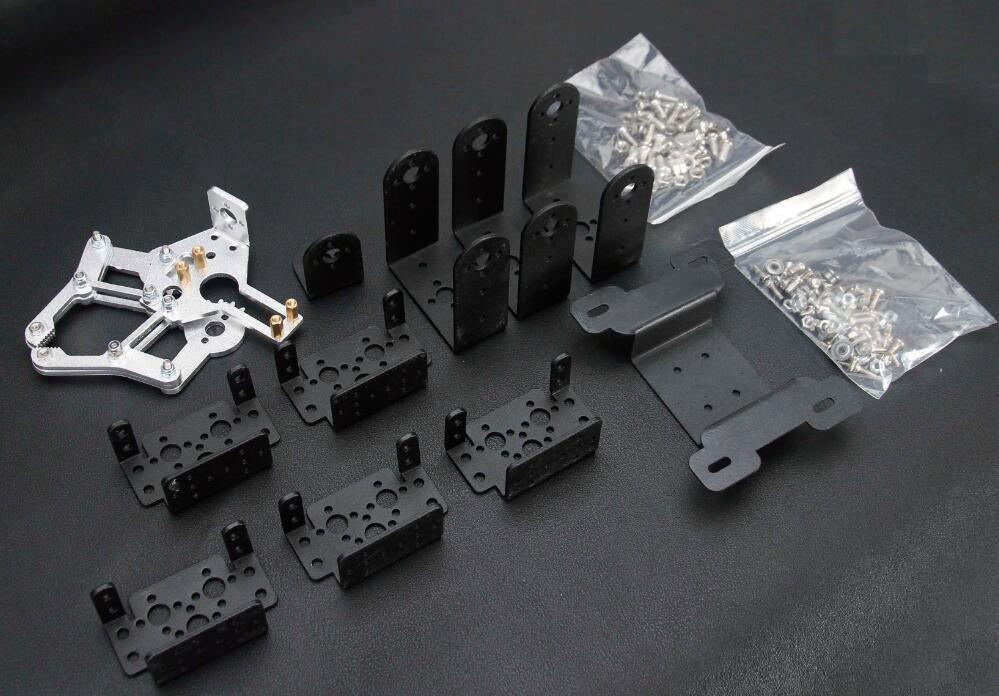

6 DOF steel Rotating Mechanical Robotic

AD085

• 1x mechanical claws
• 5x multi-bracket
• 3x long U bracket
• 1xL stent
• 2x hard U-beams
• 3x cup bearing
• A set of mounting screws (About 100PCS that is M3 x 5 Screws,
• M3 x 6 Screws; M3 x 10 Screws, M3 x 8Screws, M4x8Screws)
Note: Without Servo, recommend MG995/MG996 Servo

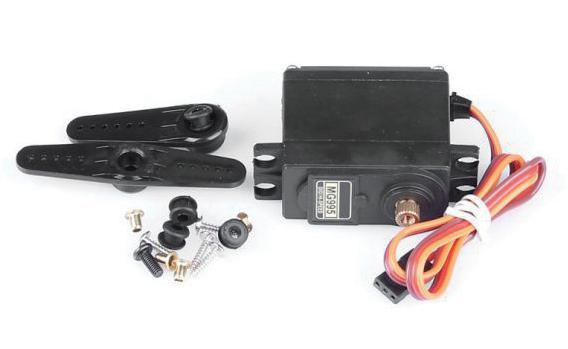

MG995 High-Speed Digital Metal Gear

AC022

• Power Supply: Through External Adapter.
• Stable and Shock Proof
• Connector Wire Length 300mm
• Operating Speed : 0.17sec / 60 degrees (4.8V no load) • Operating Speed : 0.13sec / 60 degrees (6.0V no load) • Stall Torque : 9 kg-cm (180.5 oz-in) at 4.8V
• Stall Torque : 12 kg-cm (208.3 oz-in) at 6V • Operation Voltage : 4.8 – 7.2Volts
• Gear Type: All Metal Gears
• Original box: NO
• Color: Black
• Item size: 40 x 19 x 43mm
• Servo weight: 55g
• Net weight: 66g (with accessories)

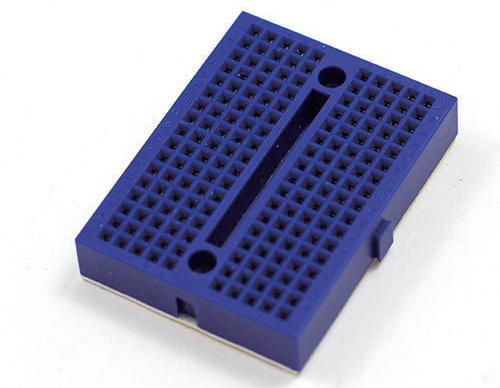

Mini Breadboard (Blue)

ST1201

Dimensions: 45mm x 35mm

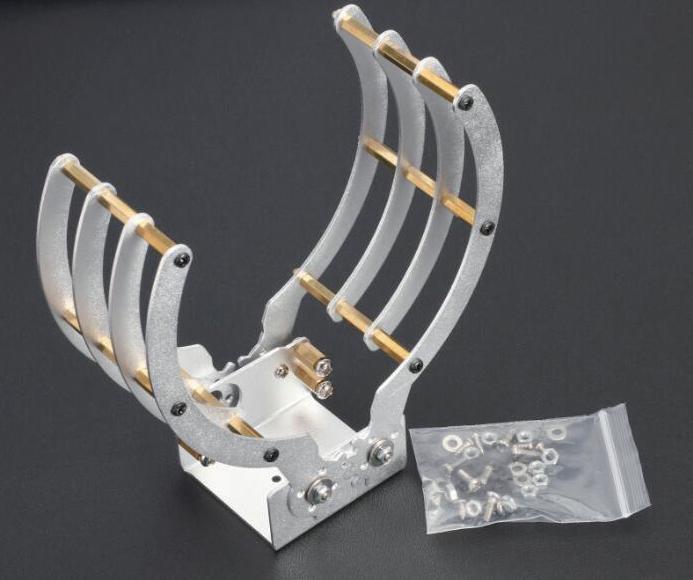

DIY Metal Mechanical Paw for Arduino Robot without Servo

AD086

This is a DIY Metal Mechanical Paw for your Arduino robot, shape as the picture show, extending the range from 0 mm to 67 mm.
Claws Material: Aluminum.
Paw weight: about 68g
The following steering ( servo motor ) can be installed in Korea HS322, HS422, 995, etc. Fraser steering, support Hitec, Parallax, Futaba, Fraser, and other brands ( size of about 40 × 20 × 36mm) standard servos.

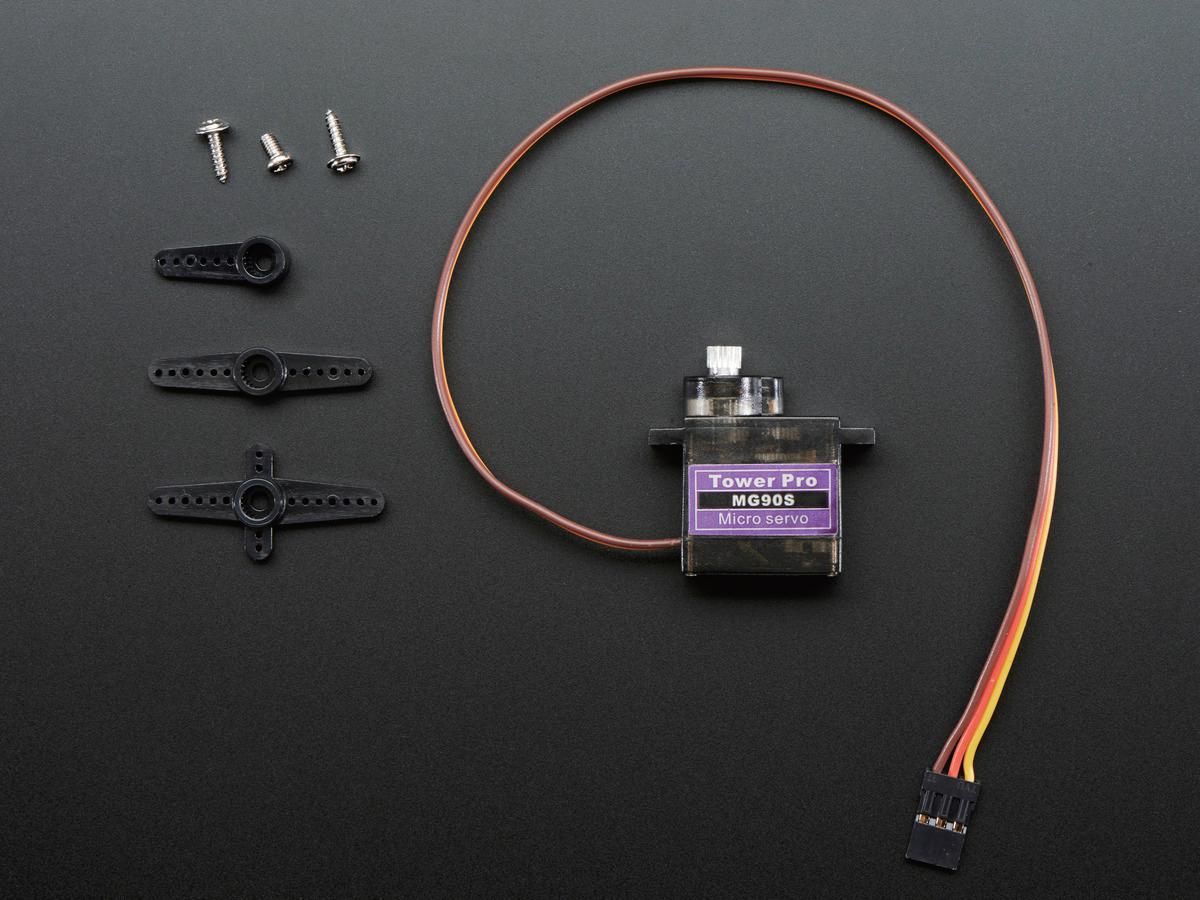

Micro Servo – MG90S

AC031

• Speed: 0.1 sec/60degrees (at 4.8V), 0.08 sec/60 degrees (at 6.0V)
• Stall Torque: At 4.8V: 1.8 kg-cm / 25 oz-in. At 6.0V: 2.2 kg-cm / 30.5 oz-in
• Size: 22.8 x 12.2 x 28.5 mm
• Voltage: 4.8V to 6V DC
• Weight: 13.4 grams

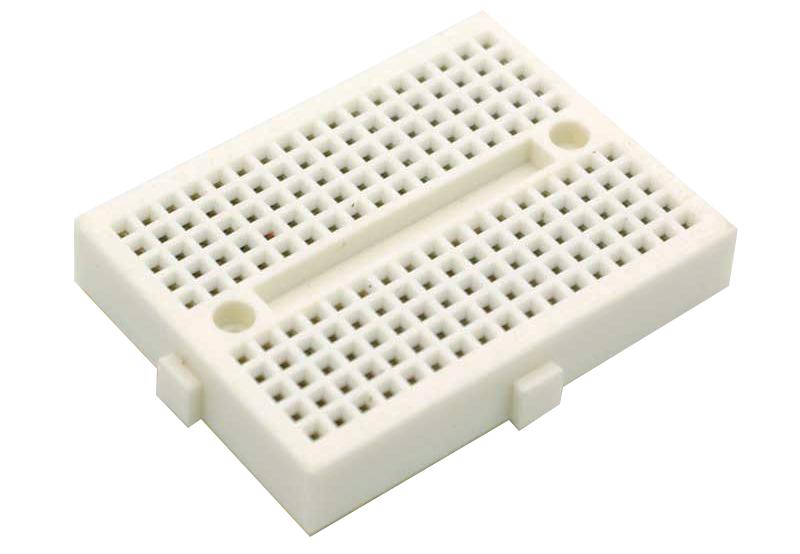

Mini Breadboard (White)

ST1202

Dimensions: 45mm x 35mm

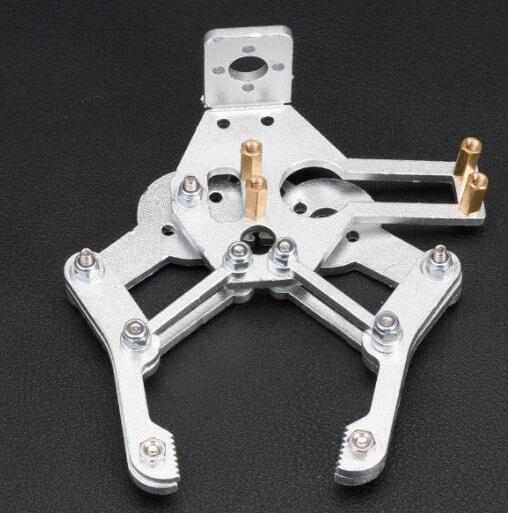

DIY Metal Mechanical Paw for Arduino Robot without Servo

AD087

This is a DIY Metal Mechanical Paw for your Arduino robot, shape as the picture show, extending the range from 0 mm to 67 mm.
Claws Material: Aluminum.
The following steering ( servo motor ) can be installed in Korea HS322, HS422, 995, etc. Fraser steering, support Hitec, Parallax, Futaba, Fraser, and other brands ( size of about 40 × 20 × 36mm) standard servos.
