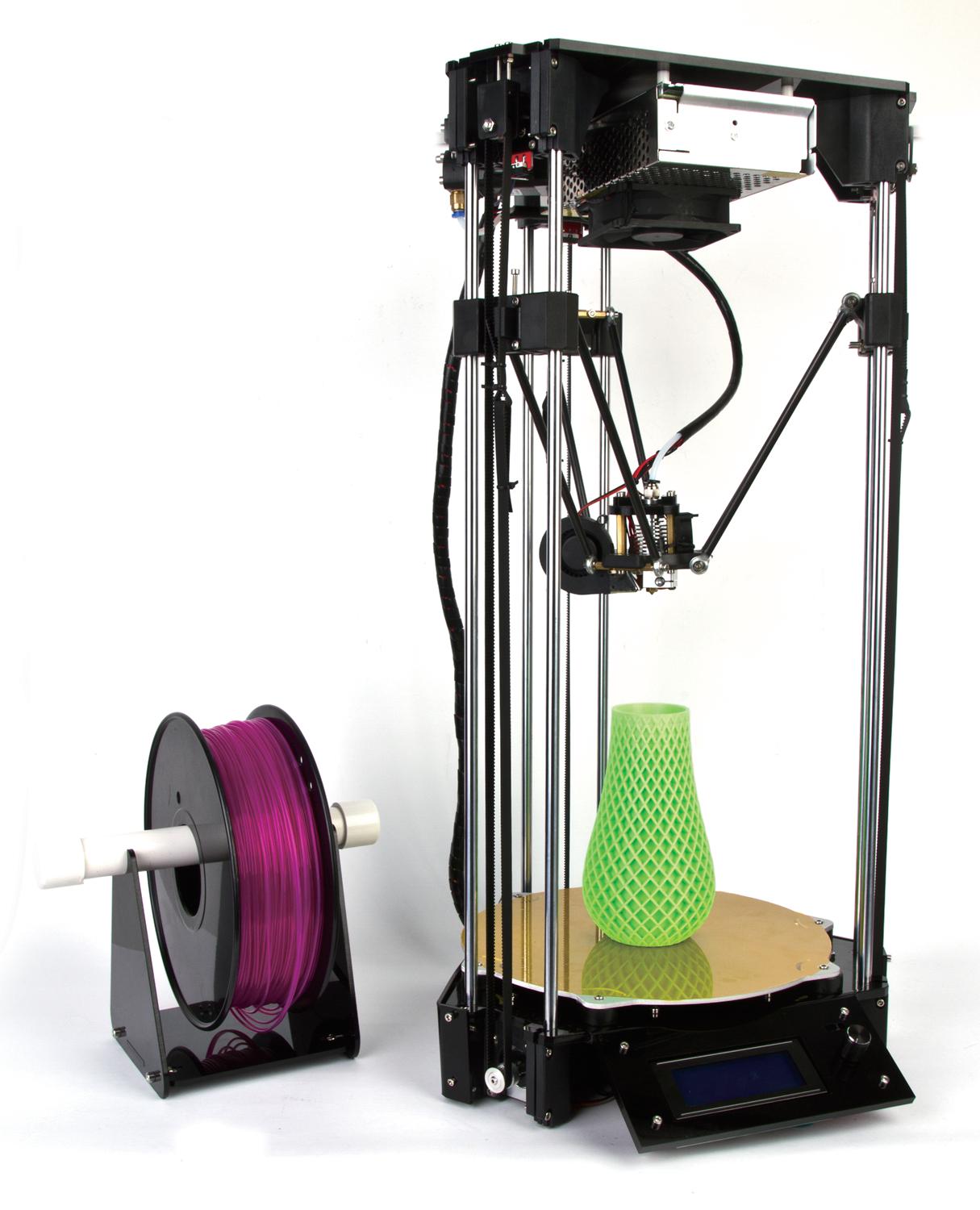

Delta SimT1 3DS010
The Delta SimT1 is our company’s DIY model 3D printers, suitable for printing of any shape model.
3DS010
Printing:
• Print technology: Fused Deposition Modeling(FDM)
• Layer resolution: standard: 0.1 mm (maximum: 0.3 mm – minimum: 0.1 mm)
• Build volume: 140 x 140 x 250 mm
• Print speed: 10 mm/s – 100 mm/s
• Filament diameter: 1.75 mm
• Prints: PLA, ABS
• Nozzle diameter: 0.3mm
• Maximum nozzle operating temperature: 260 °C
Hardware:
• Dimensions: 35 x 31 x 63cm(not includes Material)
• Packing Dimensions: 67cm×37cm×17.5cm
• Frame: Polycarbonate panels and fiber reinforced molded ABS parts
• Weight: 8.7 kg
• Ambient operation temperature: max 25 °C
• storage temperature: – 10 °C to + 40 °C
Electrical:
• Communication: USB 2.0 or SD card
• Controller board: AVR ATmega2560 based
• Display: 4 x 20 char. blue LCD with white backlight
• AC input: 100 – 240 VAC 50-60Hz 150W max.
Software:
• Firmware: Modified Open Source Marlin 3D Printer
Firmware – user upgradable
• software: Repetier – CuraEngine – Slic3r
(RepRap compatible)

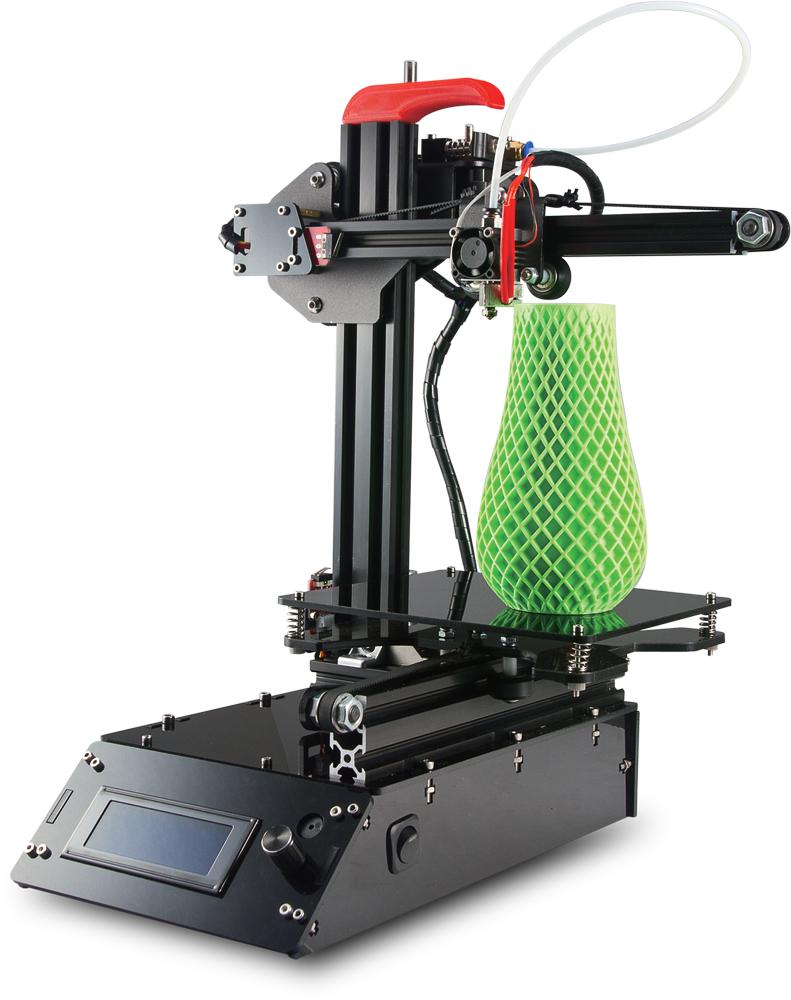

Mini 3D Printer 3DS060
The SimT2 is our company’s new Mini 3 d printers, suitable for printing of any shape model.
3DS060
Printing:
• Print technology: Fused Deposition Modeling(FDM)
• Layer resolution: standard: 0.1 mm (maximum: 0.3 mm – minimum: 0.1 mm)
• Build volume: 130 x 130 x 160 mm
• Print speed: 10 mm/s – 100 mm/s
• Filament diameter: 1.75 mm
• Prints: PLA, ABS
• Nozzle diameter: 0.3mm
• Maximum nozzle operating temperature: 240 °C
Software:
• Firmware: Modified Open Source Marlin 3D Printer
Firmware – user upgradable
• software: Repetier – CuraEngine – Slic3r
(RepRap compatible)
