Sensor for Arduino (2)

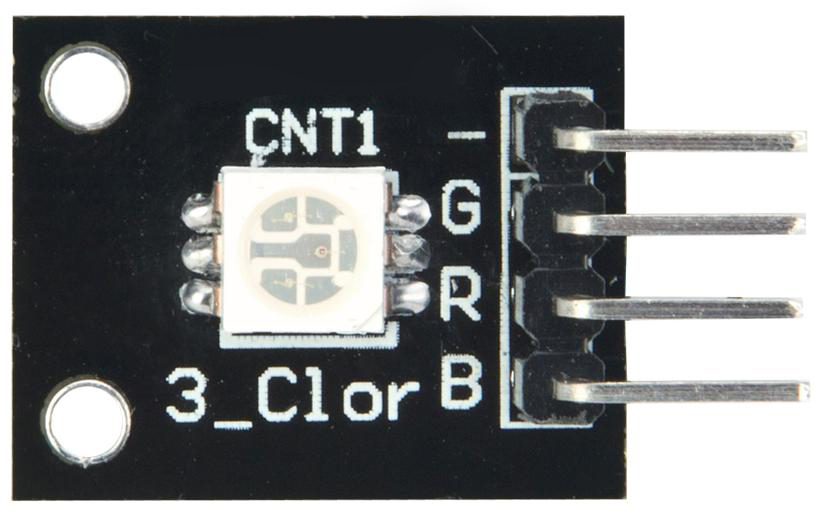

SMD RGB LED Module

ST1090

RGB LED module consists of a full-color LED made by R, G, B three pin PWM voltage input can be adjusted. Primary colors (red / blue / green) strength in order to achieve full color mixing effect. Control of the module with the Arduino can be achieved Cool lighting effects.

• Red Vf: 1.8 to 2.1V
• Green Vf: 3.0 to 3.2V
• Blue Vf: 3.0 to 3.2V
• Red color: 620-625 nm
• Green color: 520-525 nm • Blue color: 465-470 nm

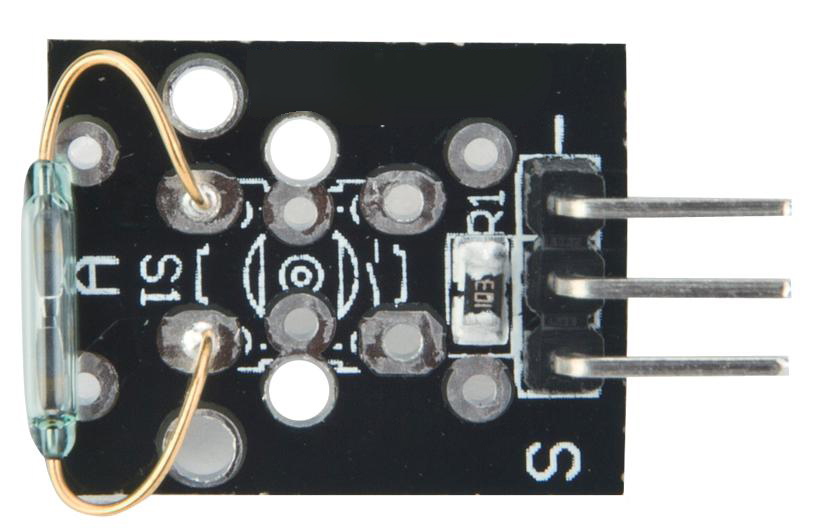

Mini Reed Switch Module

SE013

This module is a simple reed switch module, it’s similar with the SE015(Reed switch module), but it has no analog pin, no adjustable resistor, just soldering one 10K ohm resistor.

• Operation voltage: 5V • 3Pin
• Size:25x15mm
• Weight: 2g

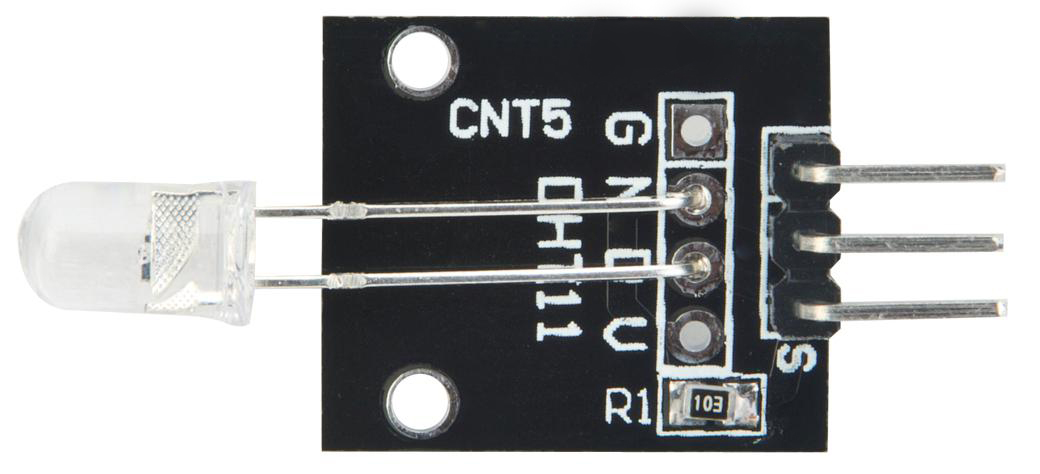

Seven-Color flash Module

SE021

This module can make colorful light from one led, just like a rainbow light. Maybe you not understand the meaning of seven-color flash, just try the example trail, it brings you amazing experience.

• Color: colorful
• Diameter: 5mm
• Shape: Round LED 5mm DIP type
• Lens type: white mist
• Standard Forward Voltage :3.0-4 .5 V

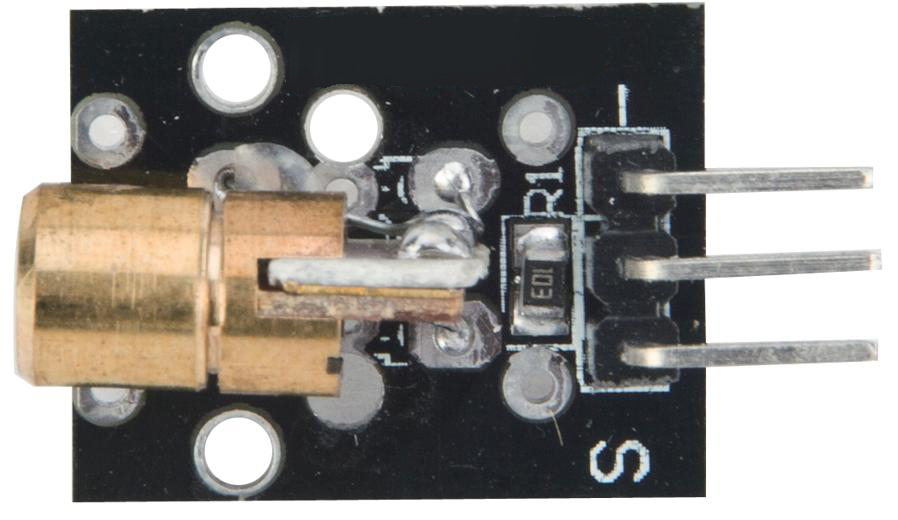

Laser Module

ST1172

Laser transmitter module, 650 nm (red), gives a small intense beam. Even this module is safety for your project, do not look direct into the beam.

• Operation voltage: 5V
• Wavelength:650nm
• Light color: Red
• Size:27x15mm
• Type:Class 3B

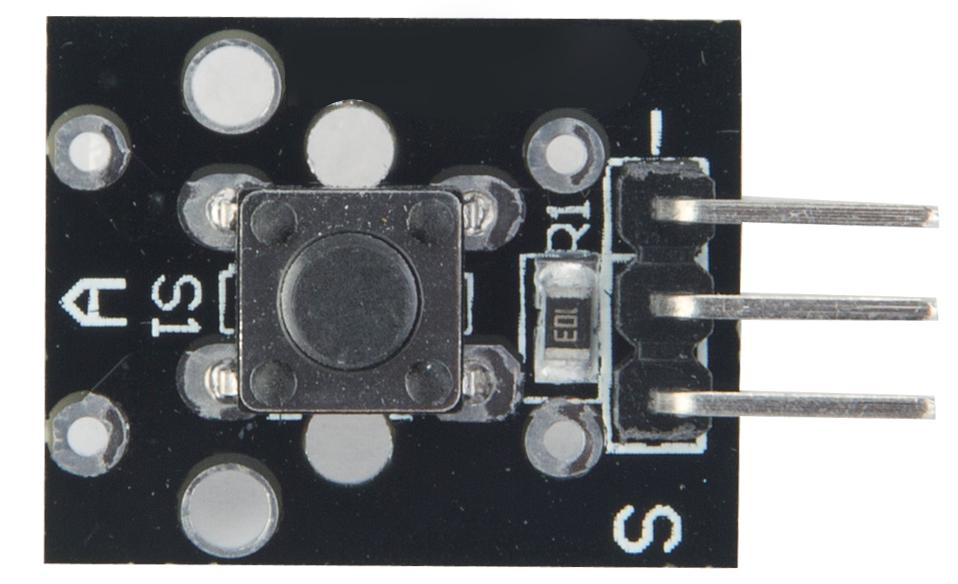

Button switch Module

SE043

This is a simple button switch module, like a key switch. When you press on the key, this module output a high level signal.

• Color: black
• Voltage:5V DC • 3 Pins

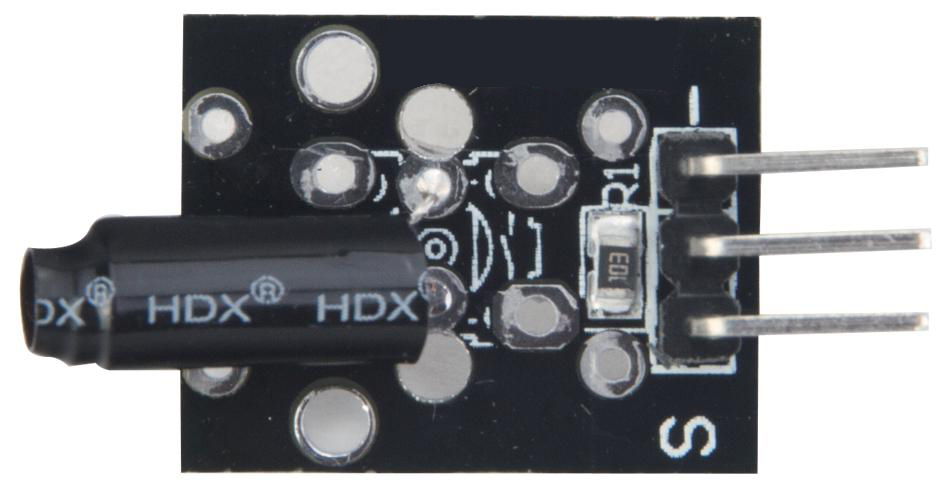

Vibration Shock module

SE053

This module is a shock switch module, and if it can detect a jolt, it output one low level signal. Be similar with our most sensor, It has three pin: Power pin, Ground pin and signal switch pin. That’s an interesting function to your Arduino project.

• Operation voltage: 5V
• 3Pin
• Size:28x15mm
• Weight: 2g

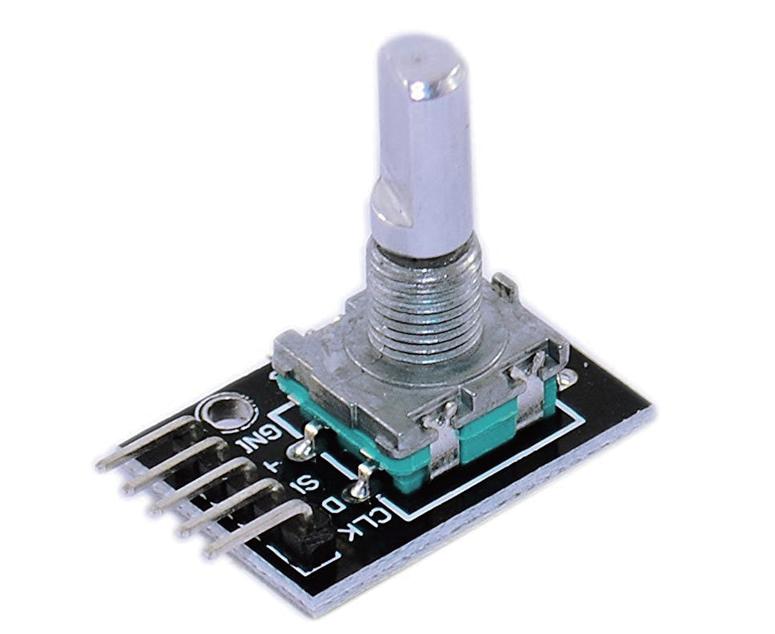

Rotary Encode Module

SE055

Rotary encoder is a rotary input device (as in knob) that provides an indication of how much the knob has been rotated AND what direction it is rotating in.It’s a great device for stepper and servo motor control. You could also use it to control devices like digital potentiometers.

• Operation voltage: 5V
• 5Pinout
• Size:32x20x30mm
• Weight: 20g

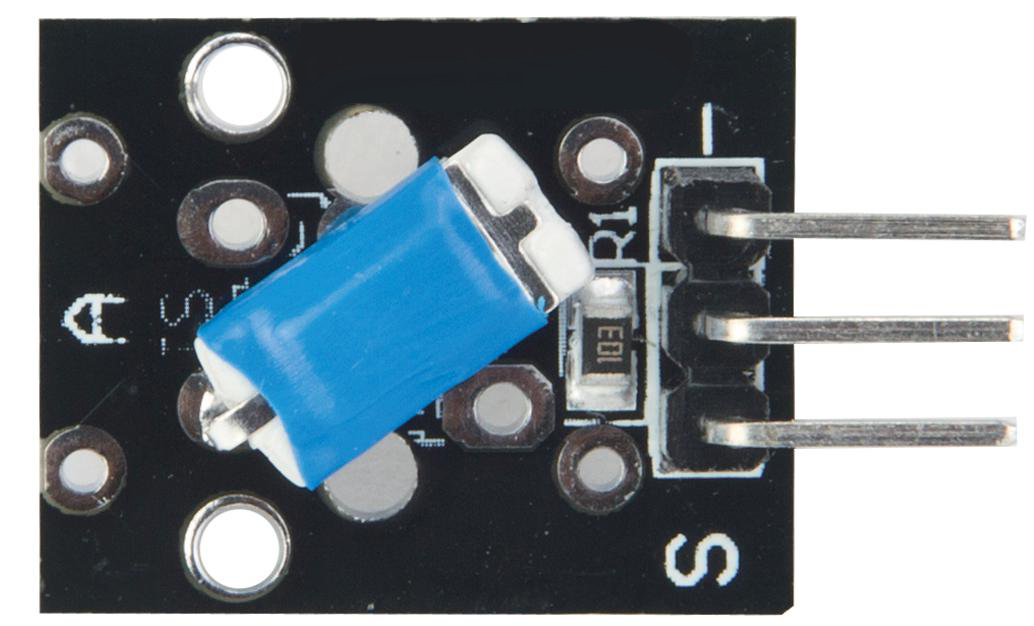

Easy switch module

SE059

Tilt switch module and digital 13 interface with LED to build a simple circuit, the production of tilt tips,Using the digital 13 interface LED, will tilt switch sensor access digital 3 interface, when the tilt switch sensor sensing to have the key signal, LED light, and vice versa.

• Operation voltage: 5V
• 3Pin
• Size:25x15mm
• Weight: 2g

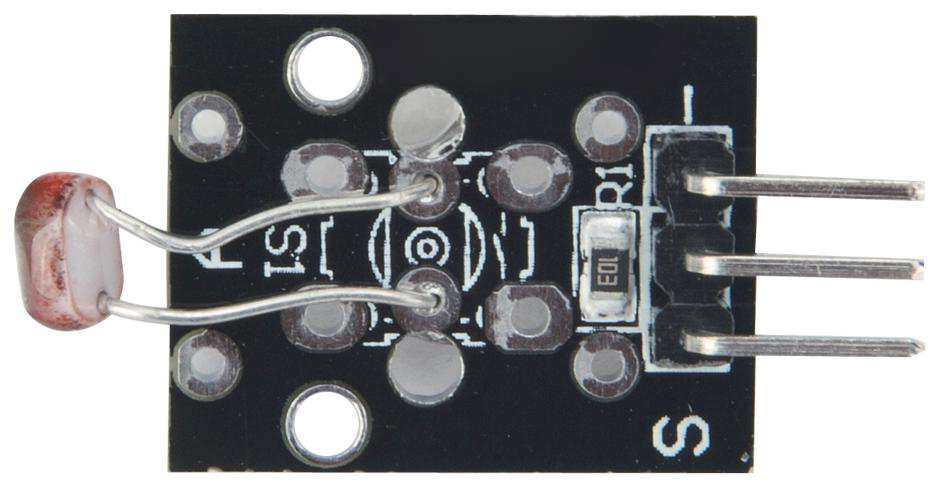

Light Dependent Resistor Module

SE012

Light Dependent Resistor, also called photoresistor, are light sensitive devices most often used to indicate the presence or absence of light, or to measure the light intensity.

• Operation voltage: 5V
• 3Pin
• Size:28x15mm • Weight: 2g

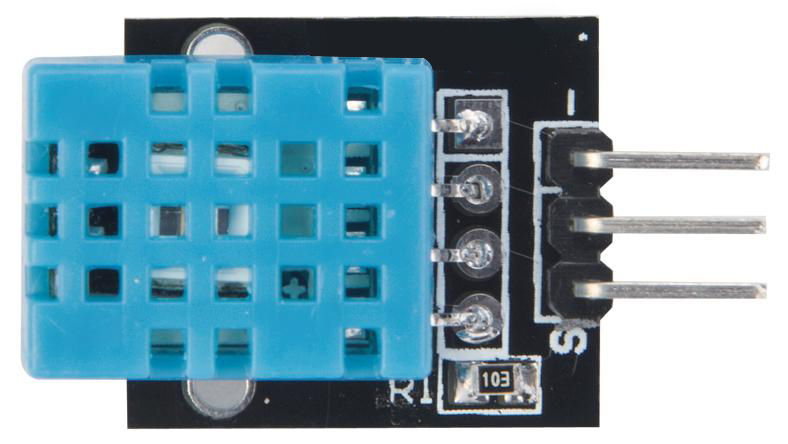

Temperature and Humidity Module

SE052

DHT11 digital temperature and humidity sensor is a composite Sensor contains a calibrated digital signal output of the temperature and humidity. Application of a dedicated digital modules collection technology and the temperature and humidity sensing technology, to ensure that the product has high reliability and excellent long-term stability. The sensor includes a resistive sense of wet components and an NTC temperature measurement devices, and connected with a high-performance 8-bit microcontroller.

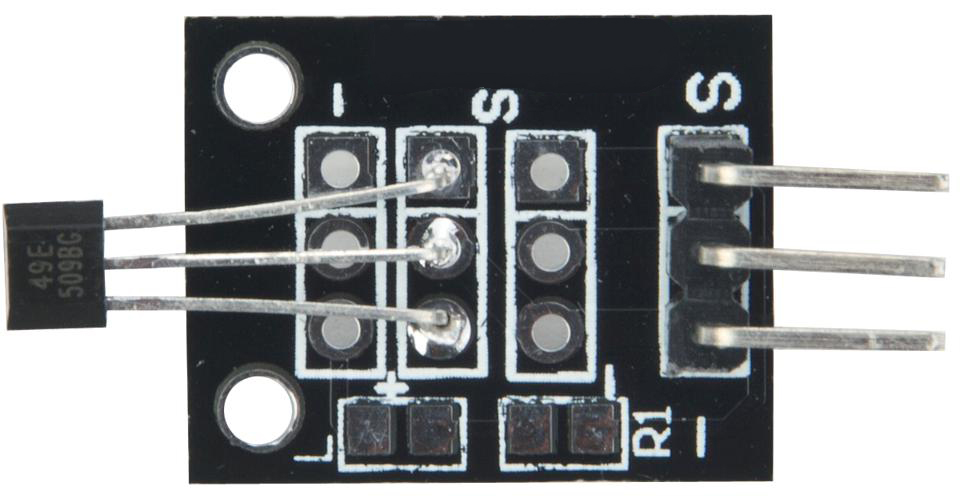

Hall Effect Sensor

SE022

This module is analog hall sensor module, it can output an analog voltage at the signal pin of this module. This module is different from hall magnetic sensor Module 31, which just output digital signal, like a magnetic switch.

• Operation voltage: 5V
• 3Pin
• Size:28x15mm
• Weight: 2g

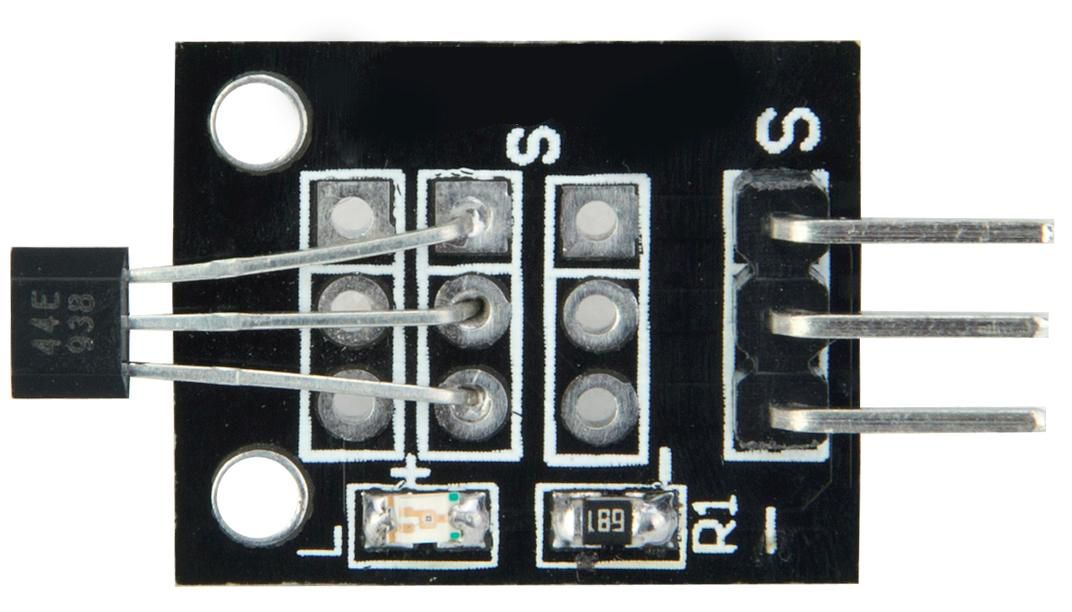

Class Hall Magnetic Sensor

SE054

This module is Digital hall sensor module, it can output a digital voltage at the signal pin of this module. Just like a magnetic switch, is different from analogy hall magnetic sensor Module 30.

• Operation voltage: 5V
• 3Pin
• Size:28x15mm
• Weight: 2g

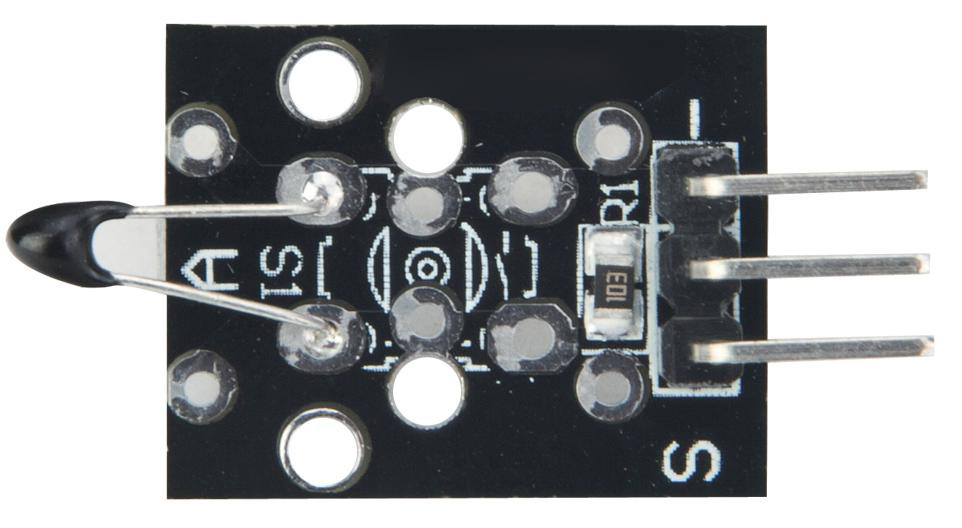

Analog Temperature Sensor

ST1147

A thermistor is a type of resistor whose resistance is dependent on temperature, more so than in standard resistors. The word is a portmanteau of thermal and resistor. Thermistors are widely used as inrush current limiter, temperature sensors (NTC type typically), self-resetting overcurrent protectors, and self-regulating heating elements.

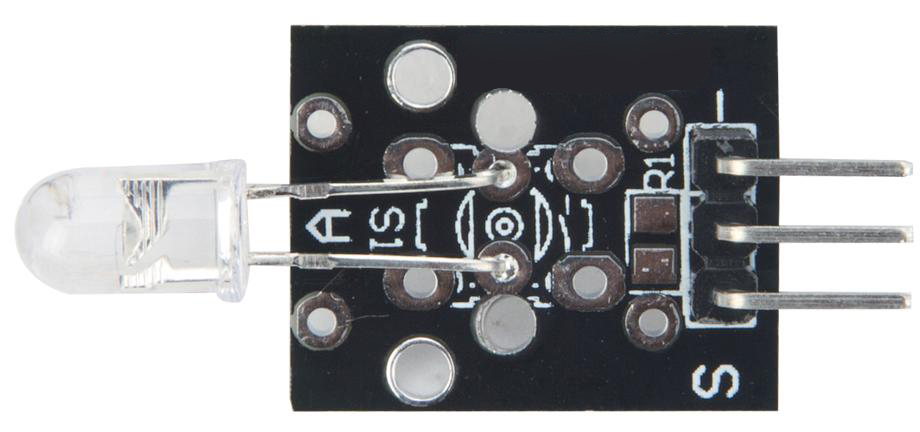

IR Transmitter Module

ST1087

This module usually used together with the IR Receiver Module(Module35), this module’s application are very wide in our common life. This module just like a LED, but the color of light can’t be seen by human’ eye, you can see the light through your camera of your phone.

• Operation voltage: 5V
• 3Pin
• Size:30x15mm
• Weight: 2g
